Kalkhoff IMAGE 5+ ADVANCE 2027

	Range	Maximum 100 miles*
	Lock	Compatible security lock available separately
	Battery Size	Bosch PowerTube Li-Ion, 800Wh
	Charger	Bosch 4A Smart Charger
	Frame Sizes	Low Step: Small 43cm, Medium 48cm, Large 53cm, XL 58cm; Crossbar: Medium 48cm, Large 53cm, XL 58cm, XXL 63cm
	Gears	Enviolo Trekking continuously variable hub gearing
	Bike Stand	Adjustable rear stand
	Bike Weight	Crossbar: 33kg; Low Step: 34kg, including 800Wh battery
	Maximum Total Weight	180kg
	Frame	Kalkhoff 5|25 Comfort Bosch aluminium; Low Step (Wave) or Crossbar (Diamond)
	Fork	SR Suntour Mobie34, 100mm travel, 110x15mm thru-axle
	Handlebar	Comfort Riser
	Saddle	Selle Royal Lookin Evo Stracciatella
	Seatpost	Aluminium suspension seatpost, lowerable
	Stem	Cockpit 2.0, adjustable, 65mm
	Gear Control	Enviolo twist control
	Tyres	Schwalbe Marathon Green 55-622
	Wheel Rims	Mach1 Trucky aluminium
	Disc Brake Rotors	180mm front / 180mm rear
	Item Carrier	MIK HD rear carrier, maximum load 27kg
	Headlight	Supernova Mini 2 LED
	Taillight	Trelock COB Line LED with brake light
	Display	Bosch Kiox 300 colour display with walk assist
	Motor	Bosch Performance Line PX Smart System, 36V / 250W / 85Nm
	Suspension Travel	100mm
	Mudguards	Extra-long aluminium with splash guard
	Grips	Herrmans Nucore Town
	Brakes	Tektro T-535 four-piston hydraulic disc brakes
	Transmission	Gates Carbon Drive CDX belt
	Gear Ratio	50-tooth front / 22-tooth rear
	Fitted Upgrades	800Wh PowerTube battery, Gates CDX belt, Enviolo Trekking hub gearing, Kiox 300 display, suspension/lowerable seatpost and MIK HD carrier
	Optional Upgrades	Kalkhoff front carrier, compatible security locks, GPS tracker, rear radar and navigation systems

Specifications are based on the latest information supplied by the manufacturer and may be subject to change without notice.

Kalkhoff IMAGE 5+ ADVANCE 2027 – premium comfort with powerful, low-maintenance performance

The 2027 Kalkhoff IMAGE 5+ ADVANCE is a beautifully equipped comfort electric bike for riders who want an easy, upright riding position without sacrificing power, range or carrying capacity. Its Bosch Performance Line PX Smart System motor, large 800Wh battery, continuously variable Enviolo gearing and clean Gates belt drive make it equally well suited to daily journeys, relaxed leisure rides and longer touring days.

Bosch Performance Line PX with 85Nm

The new Bosch Performance Line PX delivers up to 85Nm of torque, providing confident support on steep hills, into headwinds and when the bike is carrying shopping or touring luggage. Assistance is smooth and natural rather than abrupt, making it an excellent match for the IMAGE’s relaxed character. As part of the Bosch Smart System, riding modes and compatible connected functions can be managed through the eBike Flow app.

800Wh battery with a maximum 100-mile range

The frame-integrated Bosch PowerTube 800Wh battery offers exceptional capacity for longer rides and less frequent charging. Kalkhoff quotes up to 160km under favourable conditions, equivalent to a rounded maximum of 100 miles. The supplied Bosch 4A Smart Charger provides practical charging at home or work.

Enviolo Trekking and Gates CDX belt drive

The Enviolo Trekking continuously variable hub lets you adjust the gearing smoothly without jumping between fixed gears. You can also select an easier ratio while stationary, particularly useful when stopping unexpectedly in traffic or on a hill. The Gates Carbon Drive CDX belt is clean, quiet and highly durable, removing the oily chain and exposed derailleur associated with conventional transmissions.

Comfort built into every contact point

An upright Comfort Riser handlebar, adjustable Cockpit 2.0 stem, Herrmans ergonomic grips and Selle Royal Lookin Evo Stracciatella saddle create a relaxed riding position with an excellent view of the road. The fitted aluminium suspension seatpost helps absorb broken surfaces and can be lowered to make mounting and stopping easier; it is not a remote-operated mountain-bike dropper post.

100mm Mobie34 suspension and dependable city tyres

The SR Suntour Mobie34 fork provides 100mm of travel and a stiff 110x15mm thru-axle for reassuring steering control. Schwalbe Marathon Green 55-622 tyres add cushioning, reflective visibility and dependable rolling performance across tarmac, cycle paths and well-surfaced tracks.

Four-piston braking and a 180kg capacity

Tektro T-535 four-piston hydraulic disc brakes and 180mm rotors deliver controlled stopping in changing weather. The strong Plus+ chassis supports a maximum total system weight of 180kg, while the MIK HD rear carrier is rated to 27kg and is suitable for compatible luggage and child-seat systems.

Fully equipped for everyday riding

Extra-long aluminium mudguards with a splash guard, an adjustable stand, Supernova Mini 2 headlight and Trelock COB Line rear light with brake-light function are fitted as standard. The Bosch Kiox 300 colour display presents speed, battery, range and ride data clearly, while an optional Kalkhoff front carrier adds extra carrying capacity without affecting the steering.

Frame styles, sizes and colours

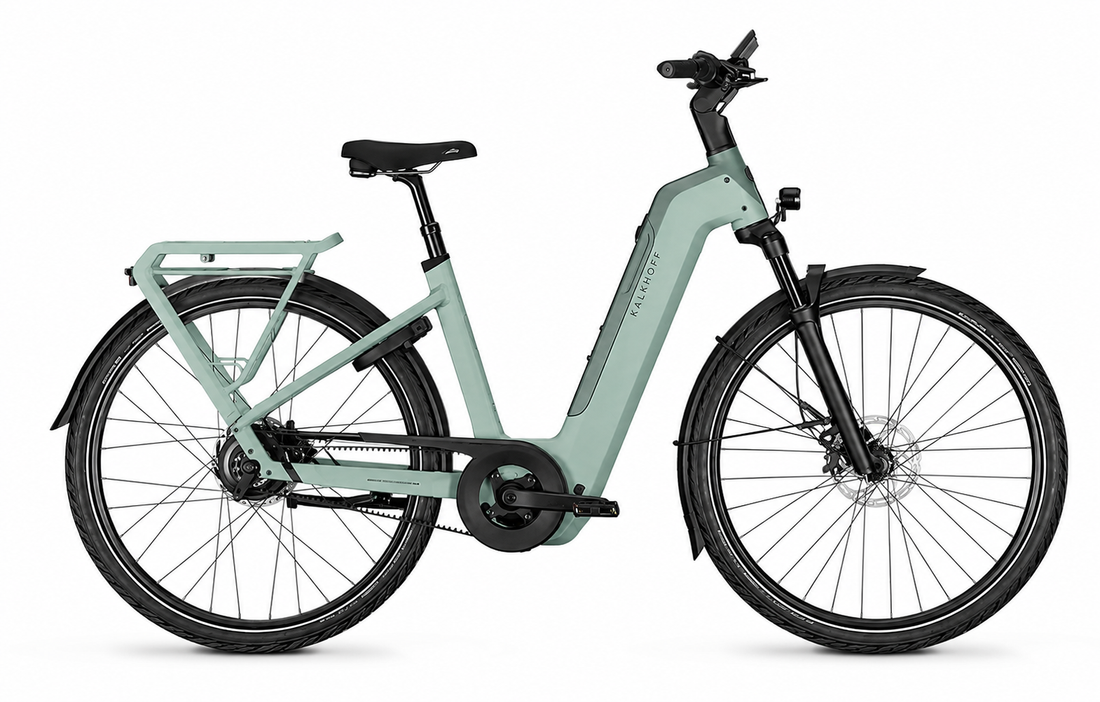

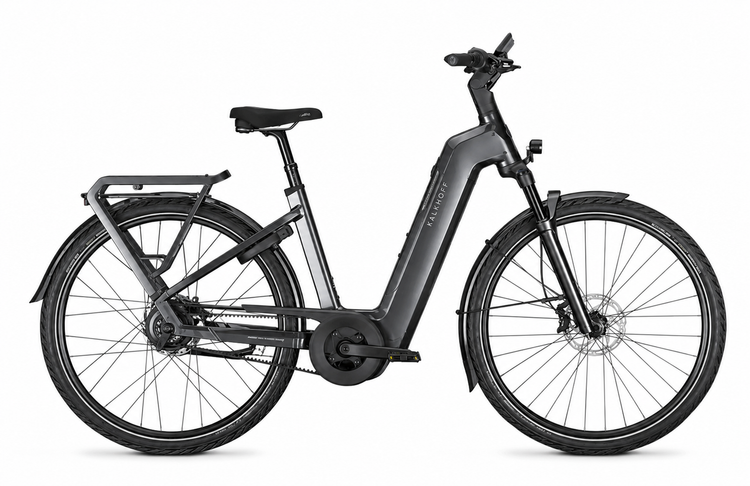

• Low Step (Wave): Small 43cm, Medium 48cm, Large 53cm and XL 58cm

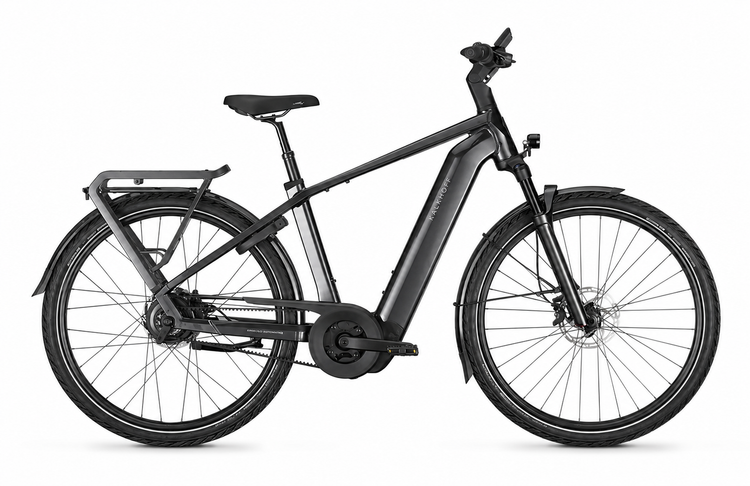

• Crossbar (Diamond): Medium 48cm, Large 53cm, XL 58cm and XXL 63cm
• Colours: Adamantsilver Glossy, Diamondblack Glossy and Sagegreen Matt

The IMAGE 5+ ADVANCE is an excellent choice for riders who prioritise comfort but still want a powerful motor, serious battery capacity and premium low-maintenance equipment.

Range note: the stated maximum 100-mile range is the manufacturer’s 160km maximum converted and rounded to miles. Actual range varies with assistance mode, terrain, rider and luggage weight, weather, tyre pressure and riding style. Maximum total weight includes the bike, rider, luggage and accessories.
