Kalkhoff IMAGE 3 ADVANCE 2027

	Range	Maximum 62 miles*
	Lock	Compatible security lock available separately
	Battery Size	Bosch PowerTube Li-Ion, 540Wh
	Frame Sizes	Crossbar: Medium 48cm, Large 53cm, XL 58cm; Low Step: Small 43cm, Medium 48cm, Large 53cm, XL 58cm
	Colours	Crossbar: Diamondblack Glossy; Low Step: Diamondblack Glossy or Midnightplum Matt
	Gears	Shimano Nexus 5-speed hub gears
	Bike Stand	Adjustable rear stand
	Bike Weight	From 29kg including 540Wh battery
	Maximum Total Weight	150kg
	Frame	Kalkhoff 3|26 Bosch aluminium; Crossbar (Diamond) or Low Step (Wave)
	Fork	SR Suntour XCM32 Coil QR, 80mm travel
	Handlebar	Comfort Riser
	Saddle	Selle Royal Essenza Plus Stracciatella
	Seatpost	Aluminium suspension seatpost
	Stem	Aluminium, adjustable
	Groupset	Shimano Nexus 5-speed; 42-tooth front / 27-tooth rear
	Tyres	Low Step Small: Schwalbe Green Marathon 55-584; all other sizes: Schwalbe Green Marathon 55-622
	Wheels	Low Step Small: 27.5-inch; all other sizes: 29-inch; Stars aluminium rims
	Hubs	Shimano QC300 quick-release front / Shimano Nexus 5-speed rear
	Disc Brake Rotors	180mm front / 160mm rear
	Item Carrier	MIK HD rear carrier, maximum load 27kg
	Headlight	Herrmans MR5 LED
	Taillight	Herrmans H-Trace LED
	Display	Bosch Purion 200 colour display with walk assist
	Motor	Bosch Performance Line Smart System, 36V / 250W / 75Nm
	Suspension Travel	80mm
	Mudguards	Plastic with edge protector
	Grips	Ergon GC10
	Brakes	Tektro T-280 two-piston hydraulic disc brakes
	Crankset	Aluminium
	Transmission	Shimano Nexus 5-speed hub with KMC Z1 EPT anti-rust chain
	Gear Ratio	42-tooth front / 27-tooth rear
	Fitted Equipment	540Wh PowerTube battery, Purion 200 display, suspension seatpost, MIK HD carrier, lights and mudguards
	Optional Upgrades	Kalkhoff front carrier and compatible security locks

Specifications are based on the latest information supplied by the manufacturer and may be subject to change without notice.

Accessories shown in product images may be available separately and may not be included as standard.

Kalkhoff IMAGE 3 ADVANCE – effortless comfort for everyday journeys

The Kalkhoff IMAGE 3 ADVANCE is a comfortable, fully equipped electric bike for commuting, shopping and relaxed leisure rides. An upright riding position, smooth Bosch assistance and low-maintenance Shimano hub gears make it easy to enjoy in town or on longer cycle-path journeys.

Bosch Performance Line with 75Nm

The Bosch Performance Line Smart System motor delivers up to 75Nm of torque for smooth support on hills, into headwinds and when carrying luggage. The compact Bosch Purion 200 colour display keeps speed, battery and assistance information clearly in view.

Integrated 540Wh battery

The frame-integrated Bosch PowerTube 540Wh battery keeps the bike balanced and gives a maximum range of 62 miles, making the IMAGE 3 ADVANCE a practical choice for daily use and weekend rides.

Simple Shimano Nexus 5-speed gearing

The Shimano Nexus 5-speed hub keeps the working parts protected inside the rear hub and allows easy, intuitive gear changes. A durable KMC Z1 EPT chain adds an anti-rust coating for dependable all-weather use.

Comfort over rougher streets

An 80mm SR Suntour XCM32 suspension fork, aluminium suspension seatpost, ergonomic Ergon GC10 grips and Selle Royal Essenza Plus Stracciatella saddle soften broken road surfaces and support a relaxed riding position. The suspension seatpost adds further comfort on uneven surfaces.

Confident braking and useful carrying capacity

Tektro T-280 hydraulic disc brakes with 180mm front and 160mm rear rotors provide controlled stopping in changing conditions. The MIK HD rear carrier is rated to 27kg, while the bike’s maximum total system weight is 150kg.

Ready for everyday riding

Herrmans front and rear LED lights, protective mudguards and an adjustable rear stand are fitted as standard. A compatible Kalkhoff front carrier can be added for extra carrying capacity.

Frame styles, sizes and colours

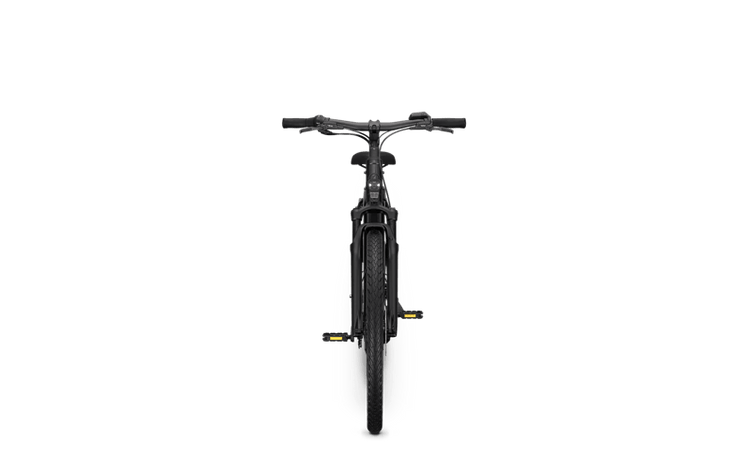

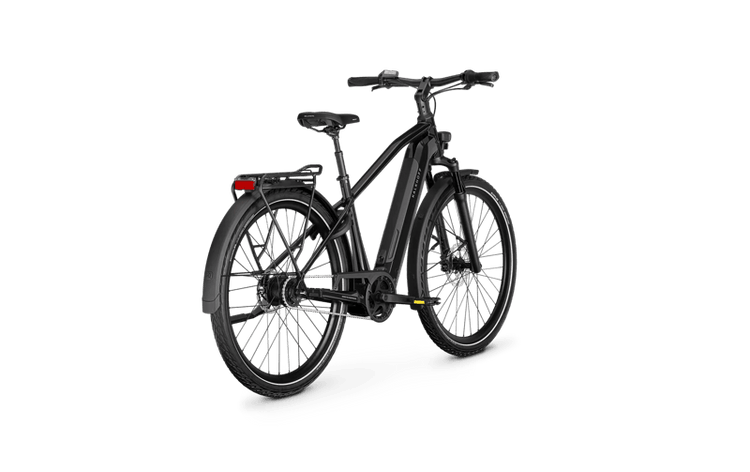

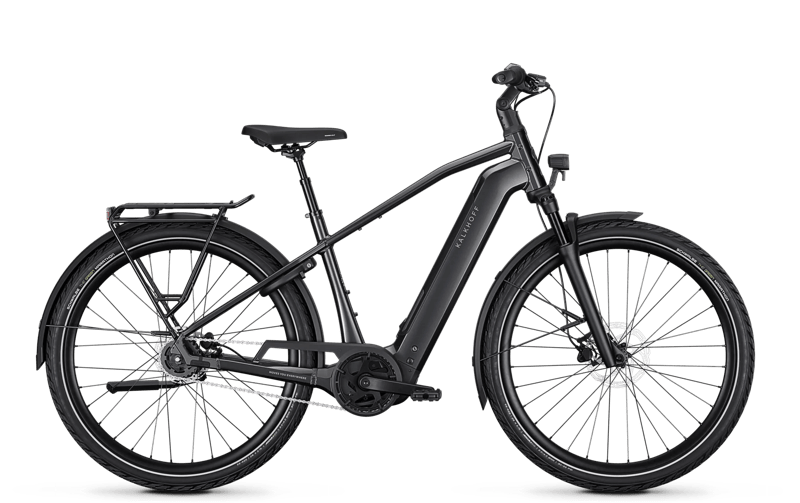

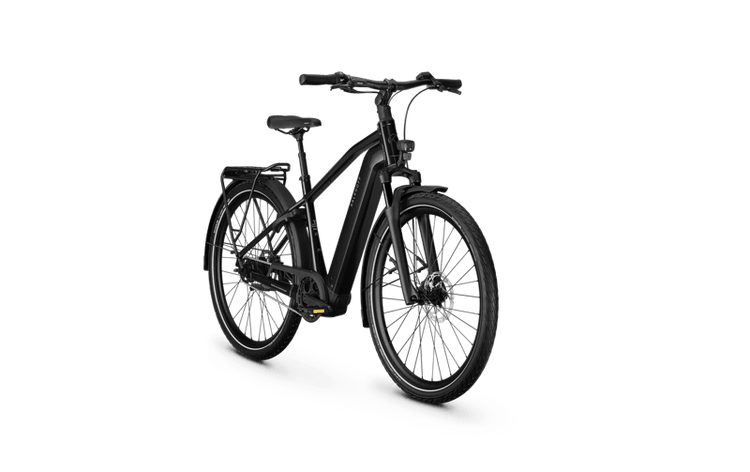

• Crossbar (Diamond): Medium 48cm, Large 53cm and XL 58cm in Diamondblack Glossy

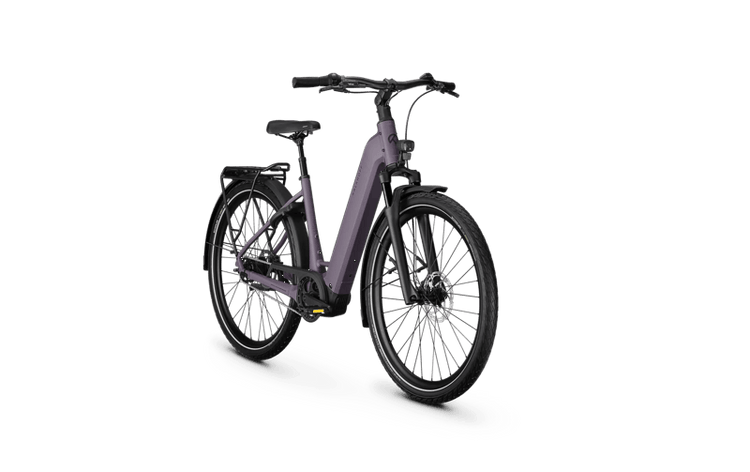

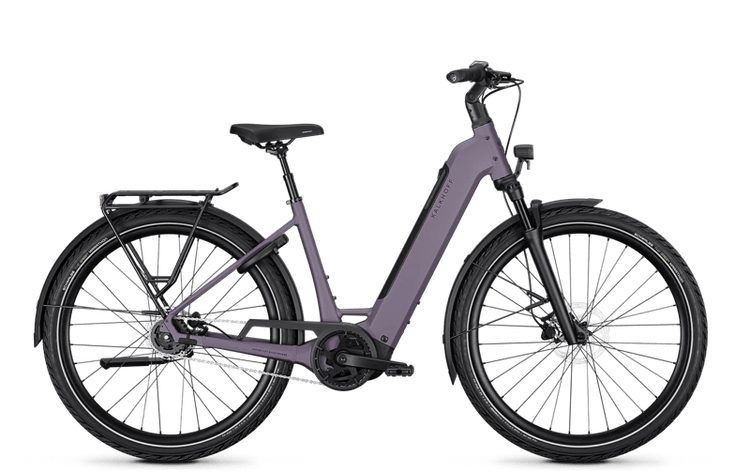

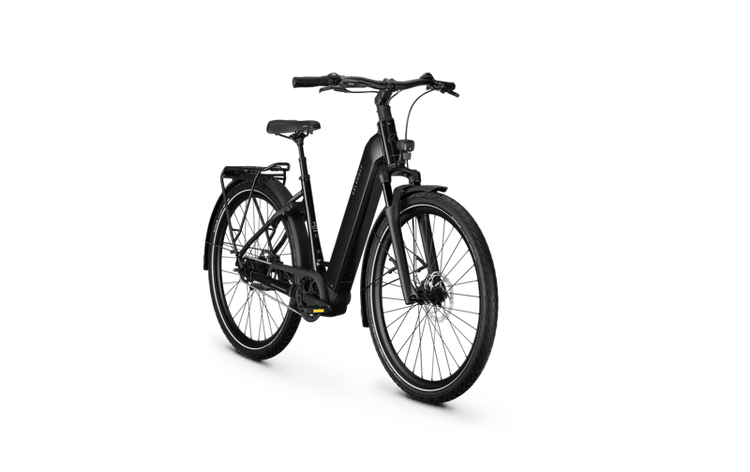

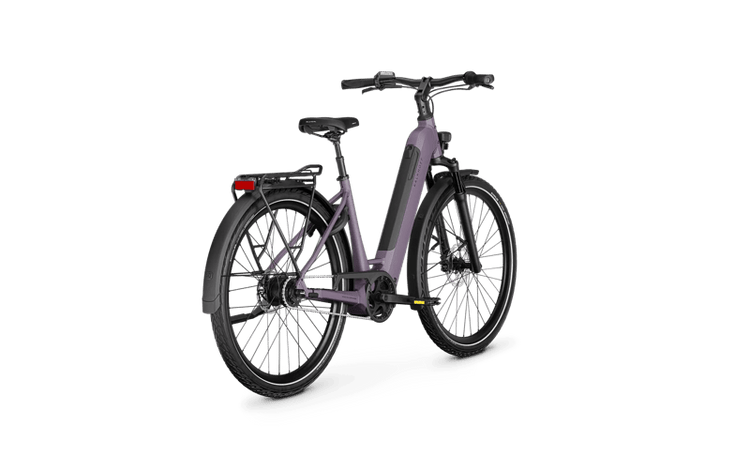

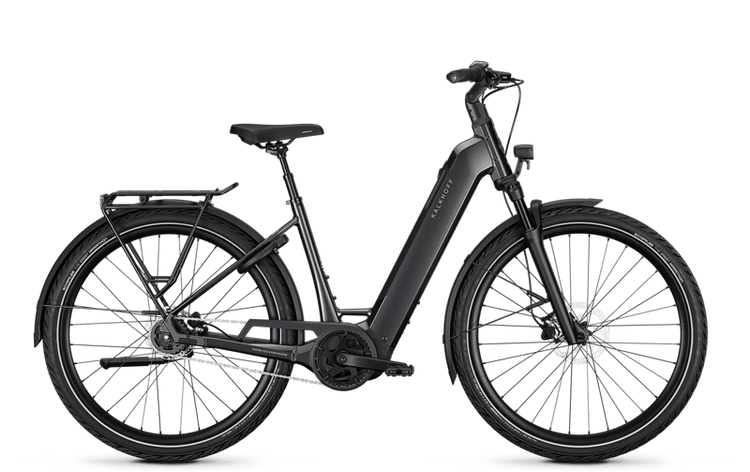

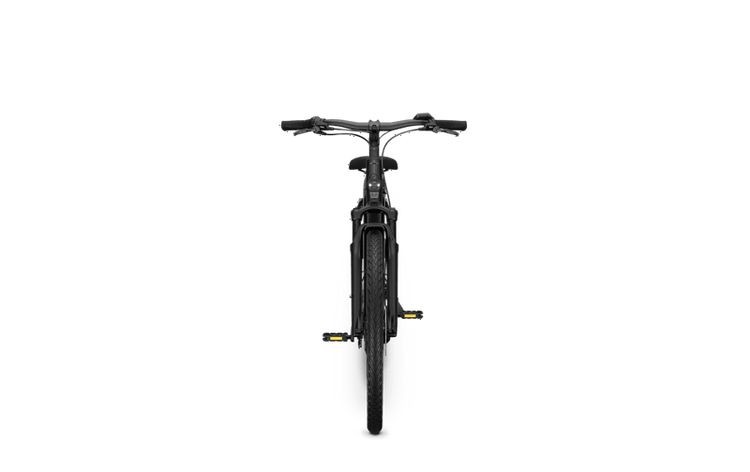

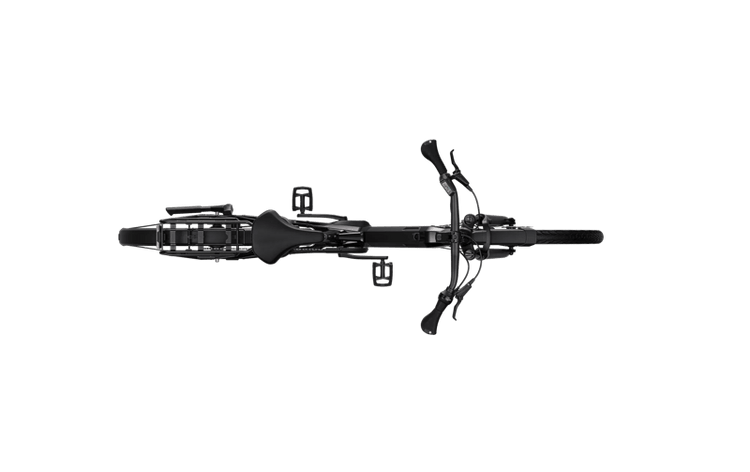

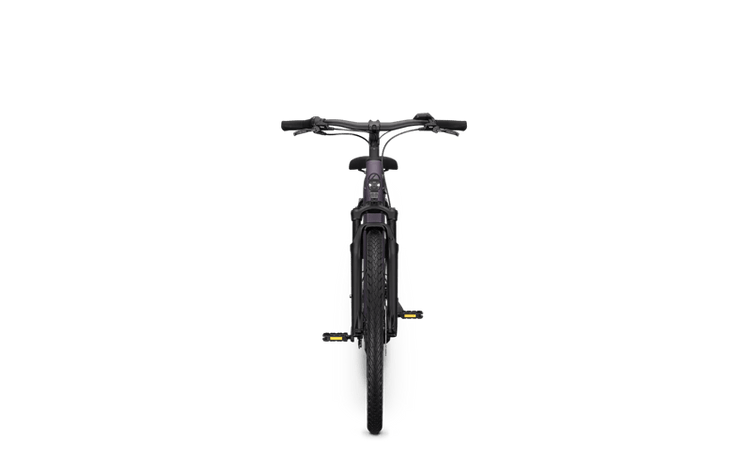

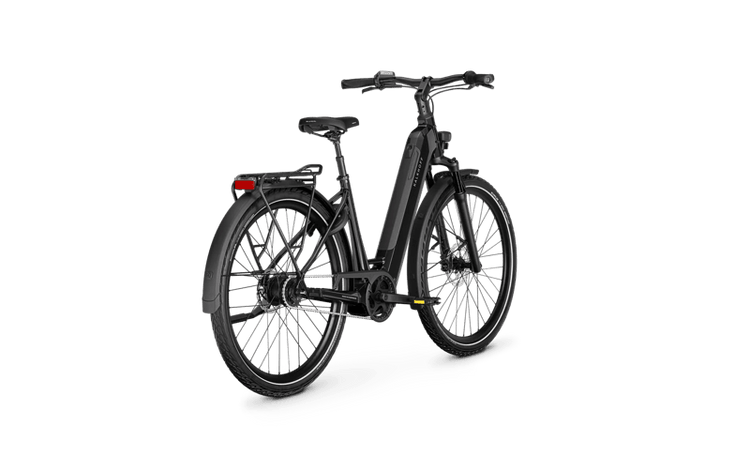

• Low Step (Wave): Small 43cm, Medium 48cm, Large 53cm and XL 58cm in Diamondblack Glossy or Midnightplum Matt

Range note: Maximum range can be affected by weather, terrain and riding conditions.
