Bosch Kiox 500 35mm Retrofit Kit – Smart System

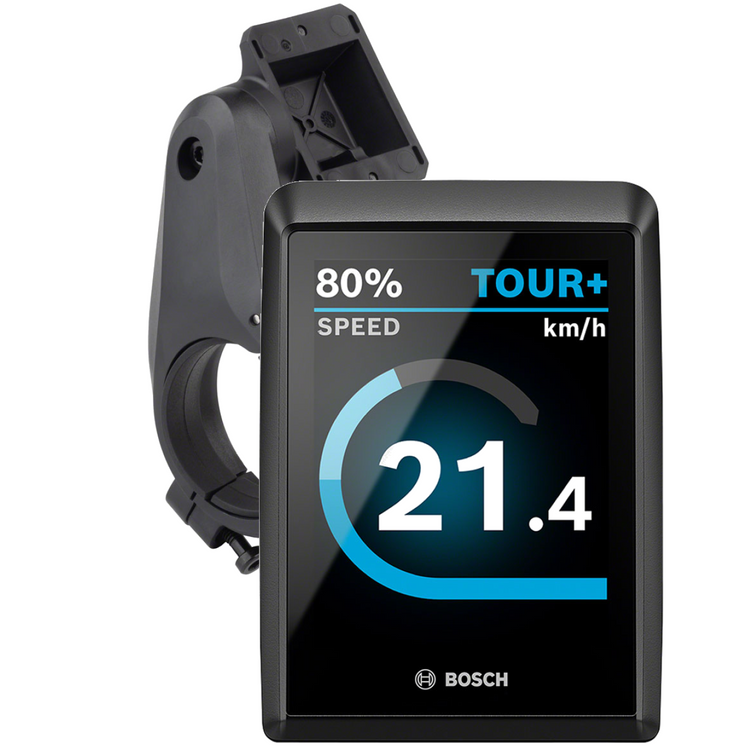

Upgrade a compatible Bosch Smart System eBike with the larger, high-contrast Bosch Kiox 500 display and a complete 35 mm one-arm mounting kit. The removable 2.8-inch colour display keeps ride data, navigation and fitness information clear in bright daylight, while acoustic cues help you follow routes and system notifications without taking your eyes off the road.

Key features

• Large 2.8-inch (7.1 cm) colour TFT display with 240 × 320 resolution
• High brightness up to 1,000 cd/m² for excellent outdoor visibility
• Navigation, ride data and fitness tracking through the eBike Flow app
• Share activity data with services including Strava and komoot
• Acoustic navigation and system cues with adjustable volume
• Removable display with IP55 protection against dust and water jets
• Powered directly by the eBike battery—no separate display battery to charge

Kit contents

• Bosch Kiox 500 display BHU3700 — part number EB13100004
• Bosch 35 mm one-arm display socket BDS3630
• Rear-cable display interface BDS3210
• 300 mm Bosch Smart System display cable BCH3611
• Installation instructions

Compatibility

For Bosch Smart System eBikes only, with a 35 mm handlebar clamp area. It is not compatible with older Bosch eBike System 2 equipment. The rear-cable interface positions the display in front of the handlebar. Control requires a compatible Bosch Smart System remote such as LED Remote, Purion 200, or Mini Remote with System Controller.

Depending on your eBike's existing wiring configuration, a Bosch Y-cable blanking plug (EB11900002) may also be required; this is not included. Compatibility should be checked before purchase. Professional fitting is recommended and is not included in the product price.

Display specification

• Model: Kiox 500 / BHU3700
• Screen: 2.8-inch transmissive colour TFT
• Resolution: 240 × 320 pixels
• Brightness: up to 1,000 cd/m²
• Protection rating: IP55
• Colour: Black
• Clamp size: 35 mm
