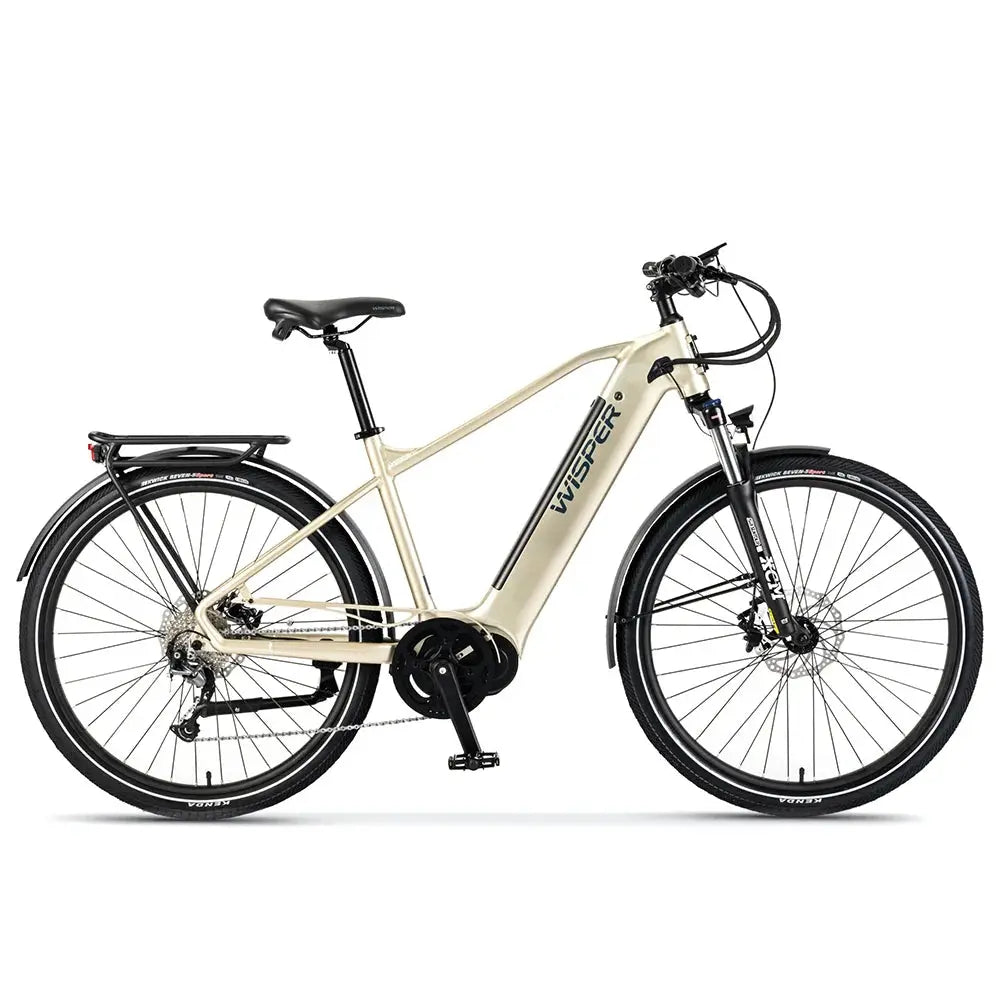

Wayfarer Mid-Drive Crossbar

The Wayfarer M7 Mid-DRIVE Crossbar Step is an exceptional electric bicycle, featuring the highest-performing mid-drive technology on the market. Combining a powerful 100Nm torque with a thumb throttle that gives speeds of up to 4mph when walking and 15.5mph when in assist mode, or can be unlocked to give a full throttle option (give us a call if this is something you require), this unisex all-rounder has plenty of torque to take you to wherever you’re going swiftly and efficiently.

Mid-drive motors have an advantage over traditional hub motors in terms of performance and torque due to their ability to drive the crank, rather than the wheel. This has the effect of multiplying its power output and enabling it to better utilize the bike's gears. As a result, mid-drive motors can offer superior acceleration, hill climbing capabilities, and efficiency compared to hub motors. This makes them a great option for those who want higher performance. Ultimately, mid-drive motors provide greater performance, torque, and efficiency than traditional hub motors.

To ensure complete convenience and ease of use, its top slotted in-frame battery system comes with a choice of either a standard 450Wh or a long range 700Wh for the serious cyclists among us. Fitted with  Suntour XCM 32 suspension for unbeatable riding comfort - even over extremely bumpy terrain. For an added bit of luggage carrying capacity, it also comes equipped with a rear rack that can hold up to 10kg of weight, with the optional front rack also capable of holding 10kg for those who need even more storage space.

If performance is what you’re after, then look no further than the Wayfarer M7 Mid-DRIVE; the perfect combination of power, agility and capability - truly embodying modern convenience and longevity through city streets or explore rural trails and forests, the Wayfarer H7 Hub-Drive Step-Through makes your ride comfortable, efficient, and effortless – every time you hop on!

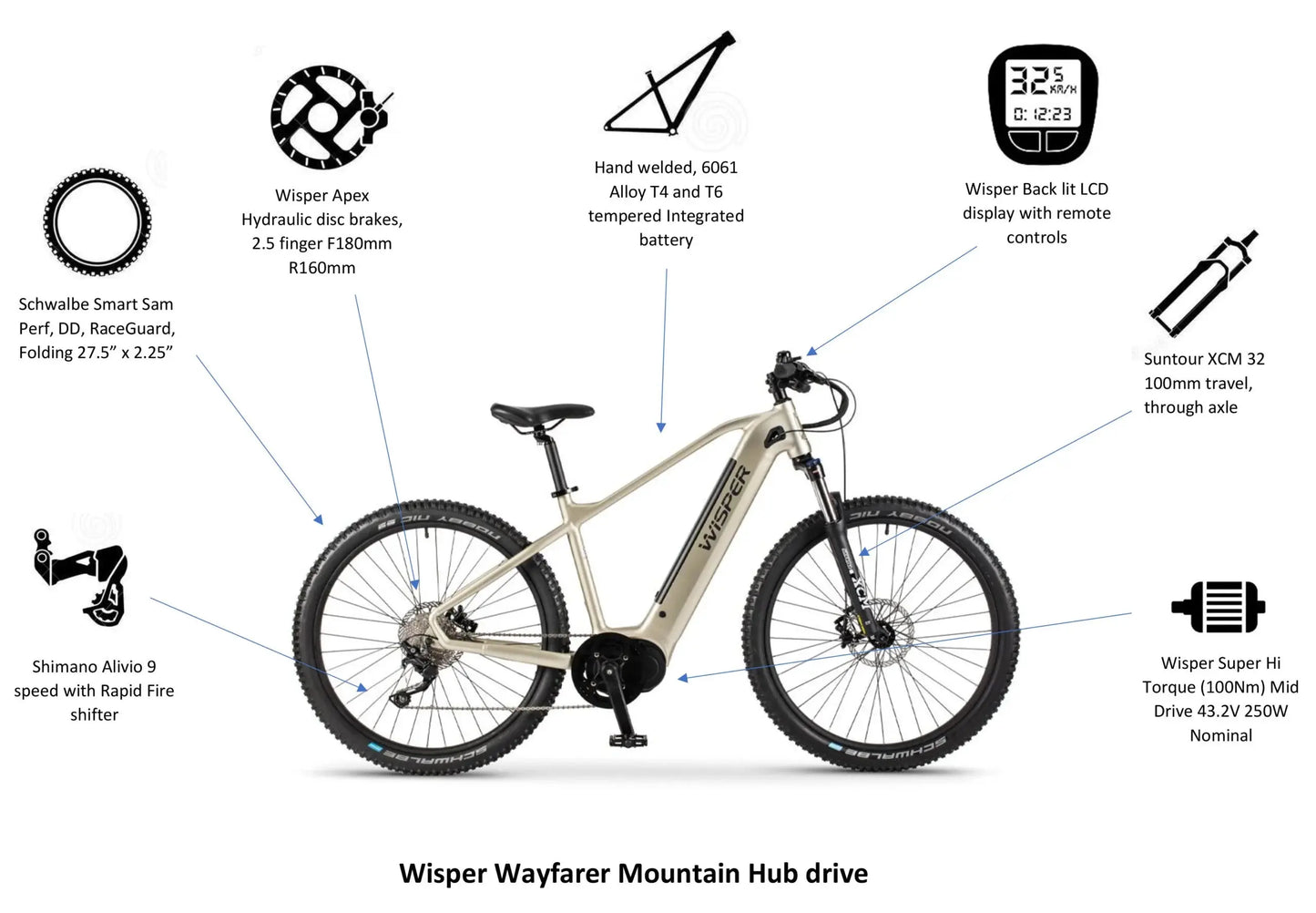

Technical Specification

Colour

Iridium Silver

Motor

Wisper Super Hi Torque (100Nm) Mid Drive 43.2V 250W Nominal

Lithium Battery

In frame, secure removable. Chargeable in or out of frame
On/off button with LED charge status light.
Standard 450Wh
Long range 700Wh

Assisted range

450Wh Max Range = 60 miles (95km)
700Wh Max Range = 90 miles (140km)

Controls

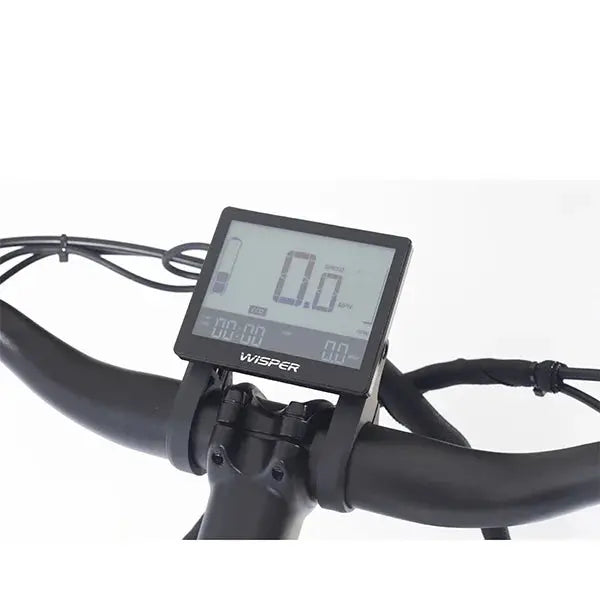

Wisper Back lit LCD display with remote controls

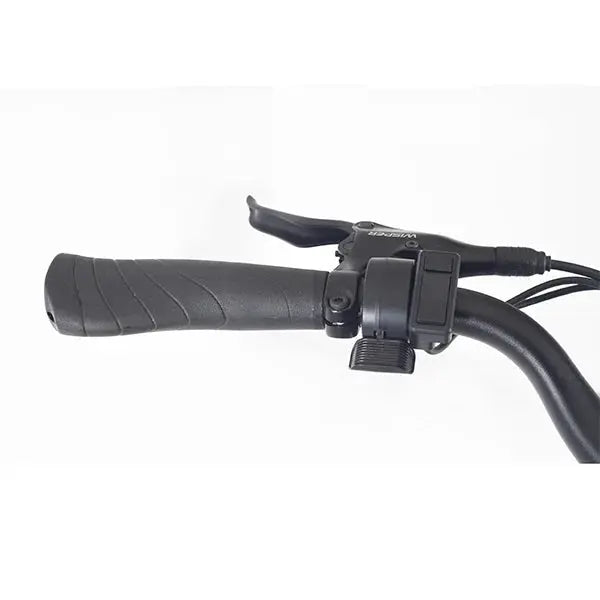

Thumb throttle to 4mph (6km/h) walk along
Thumb throttle to 15.5mph (25km/h) assist boost

Bicycle weight

450Wh: 27kg
700Wh: 29kg

Frame

Hand welded, 6061 Alloy T4 and T6 tempered

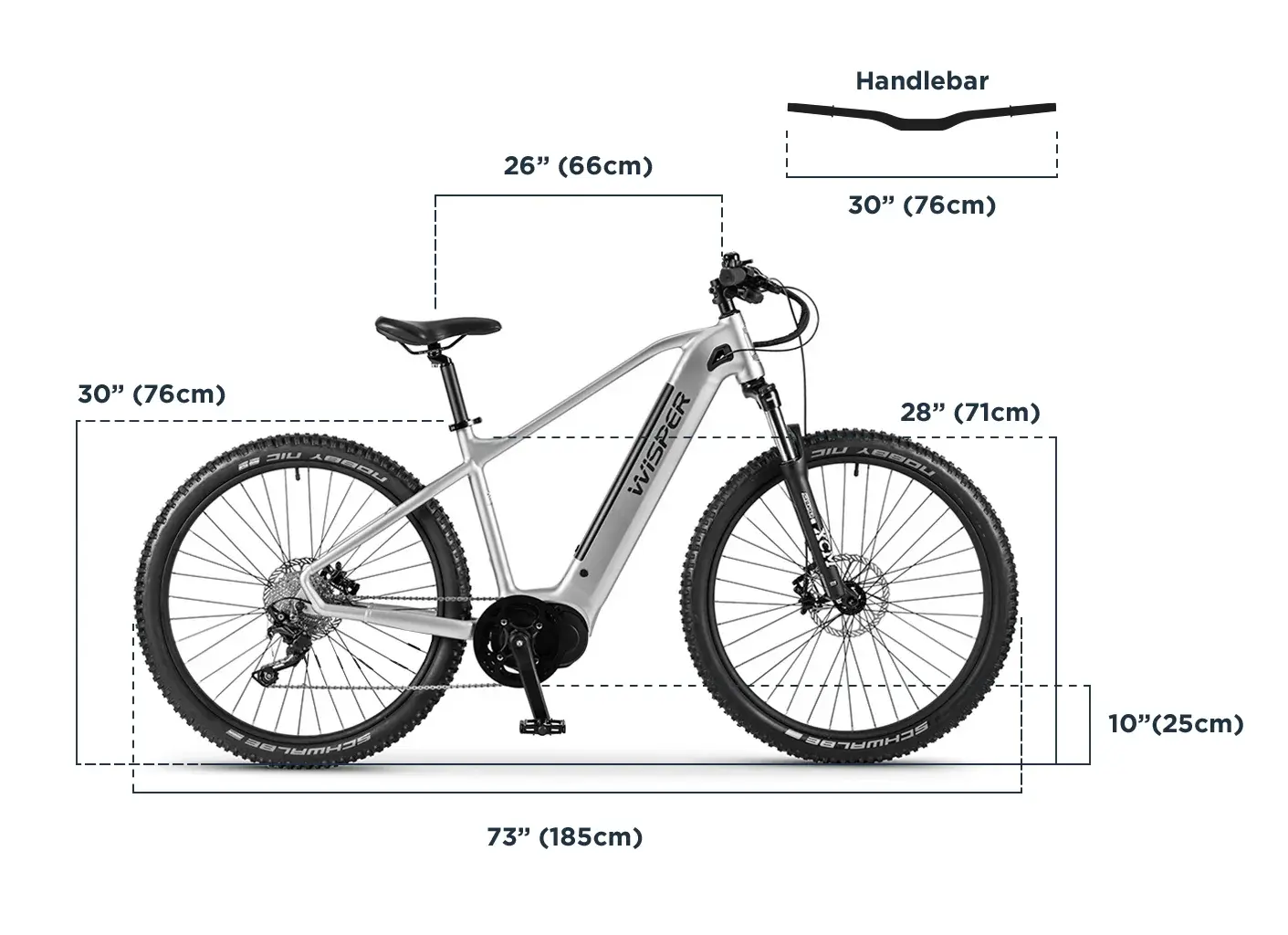

Frame size

17.5” 44.5cm

Frame Colour

Iridium Silver 6 coats

Forks

Suntour XCM 32 100mm travel, through axle

Bars

635mm swept back anodised black

Stem

Magix black anodised 110mm adjustable

Seat post

31.6mm 350mm with 100mm safety line

Saddle

Wisper Comfort, eBike with seat handle

Kick stand

Black anodised alloy

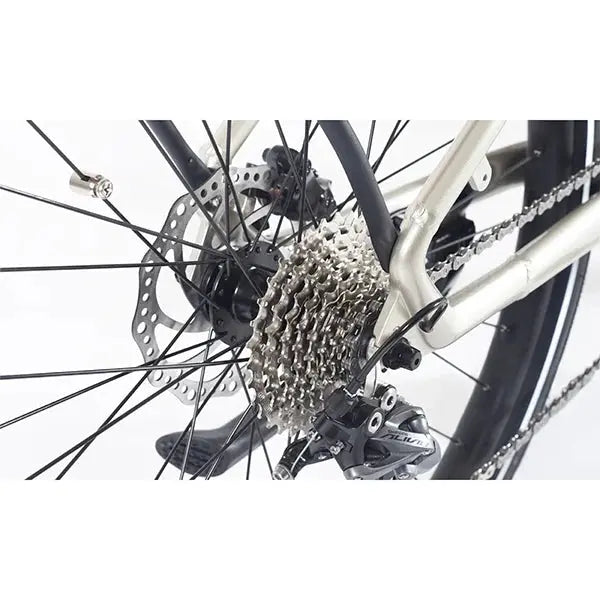

Gears

Shimano Alivio 9 speed with Rapid Fire shifter

Chain

KMC X9 rust resist 9 speed

Chain drive

44t Rear

Freewheel

11 to 36

Brakes

Wisper Apex Hydraulic disc brakes, 2.5 finger F180mm R160mm

Wheels

Alloy black anodised double wall 27.5” x 1.24″ (31.4mm)

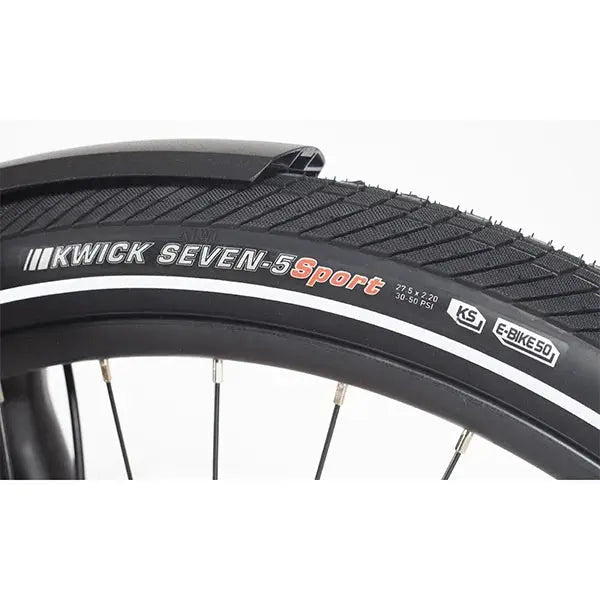

Tyres

Kenda 27.5” 2.2 high puncture resistance with reflector

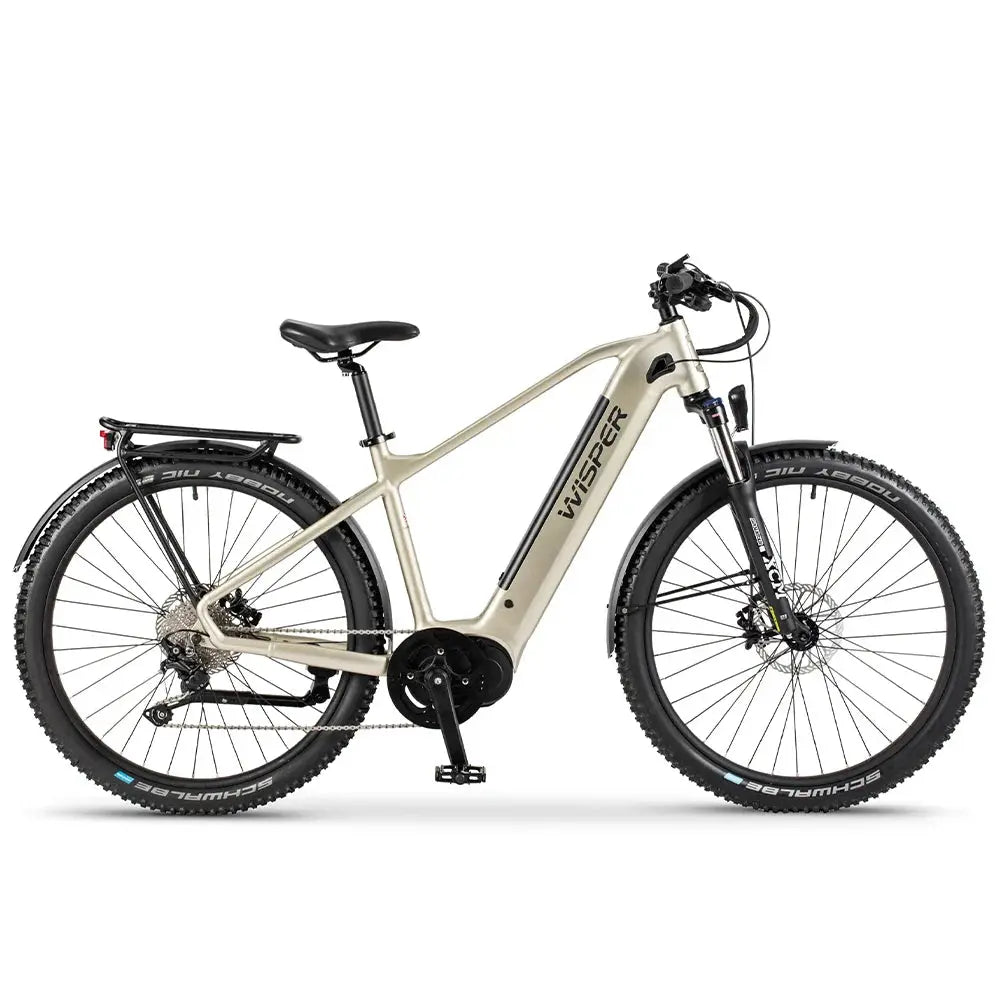

Adventure Bike Tyre Upgrade (optional extra)
Schwalbe Smart Sam Perf, DD, RaceGuard, Folding 27.5” x 2.25” First class all-rounder with extra safe Double Defence puncture protection 3mm GreenGuard layer, SnakeSkin sidewall. ECE-R75 approved for great riding fun on your E-Adventure Bike. Wayfarer rims can take tyres of up to 2.25″ wide without fouling forks or frame. Tyres of more than 2.25″ can only be used without mudguards.

Mudguards

Black Anodised Aluminium 2.6″

Lighting

Front: Spaningo XE 6V powered from bike battery
Rear: Spaningo XE 6V powered from bike battery

Rear Rack

Wisper integrated custom, 17kg limit

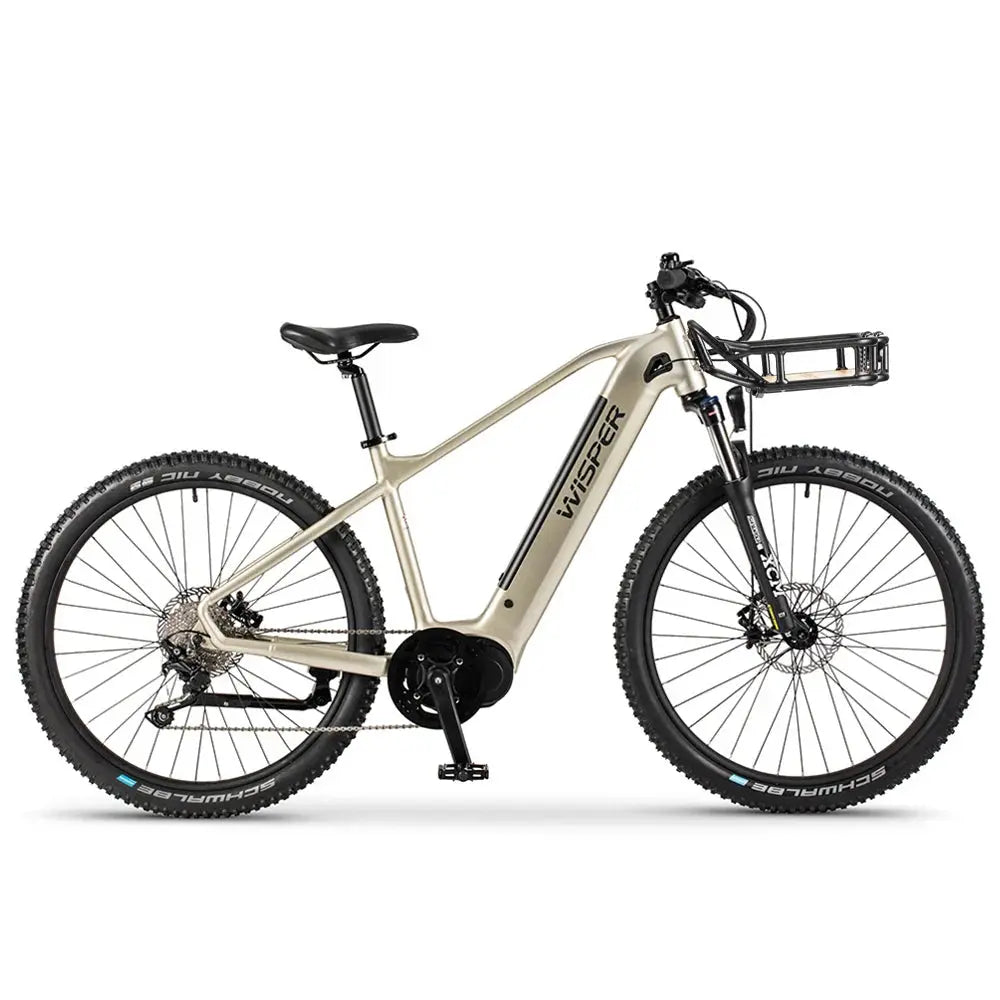

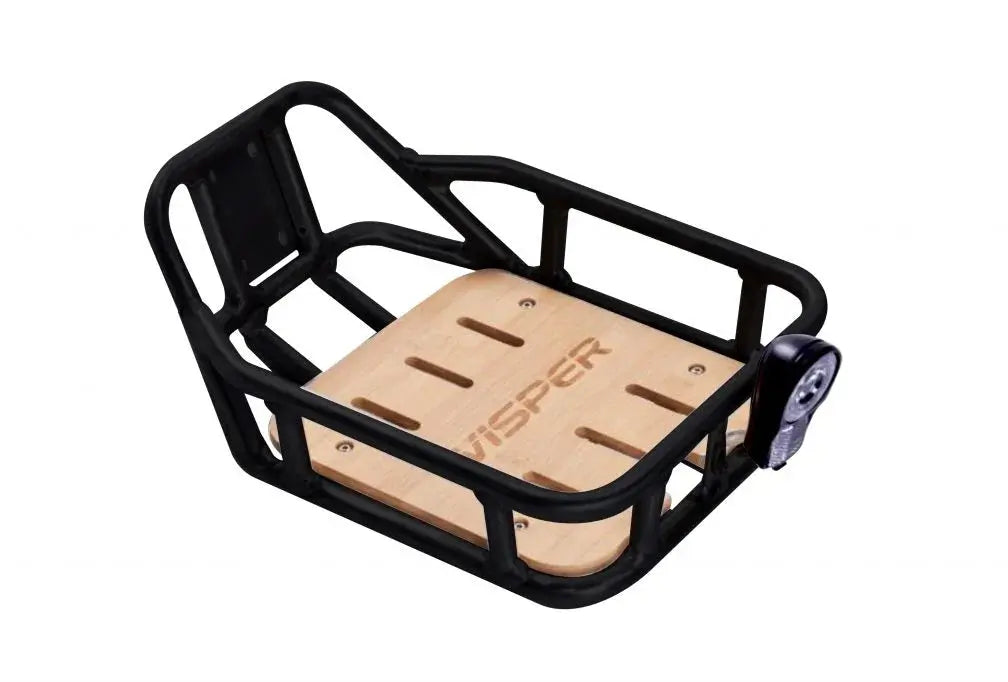

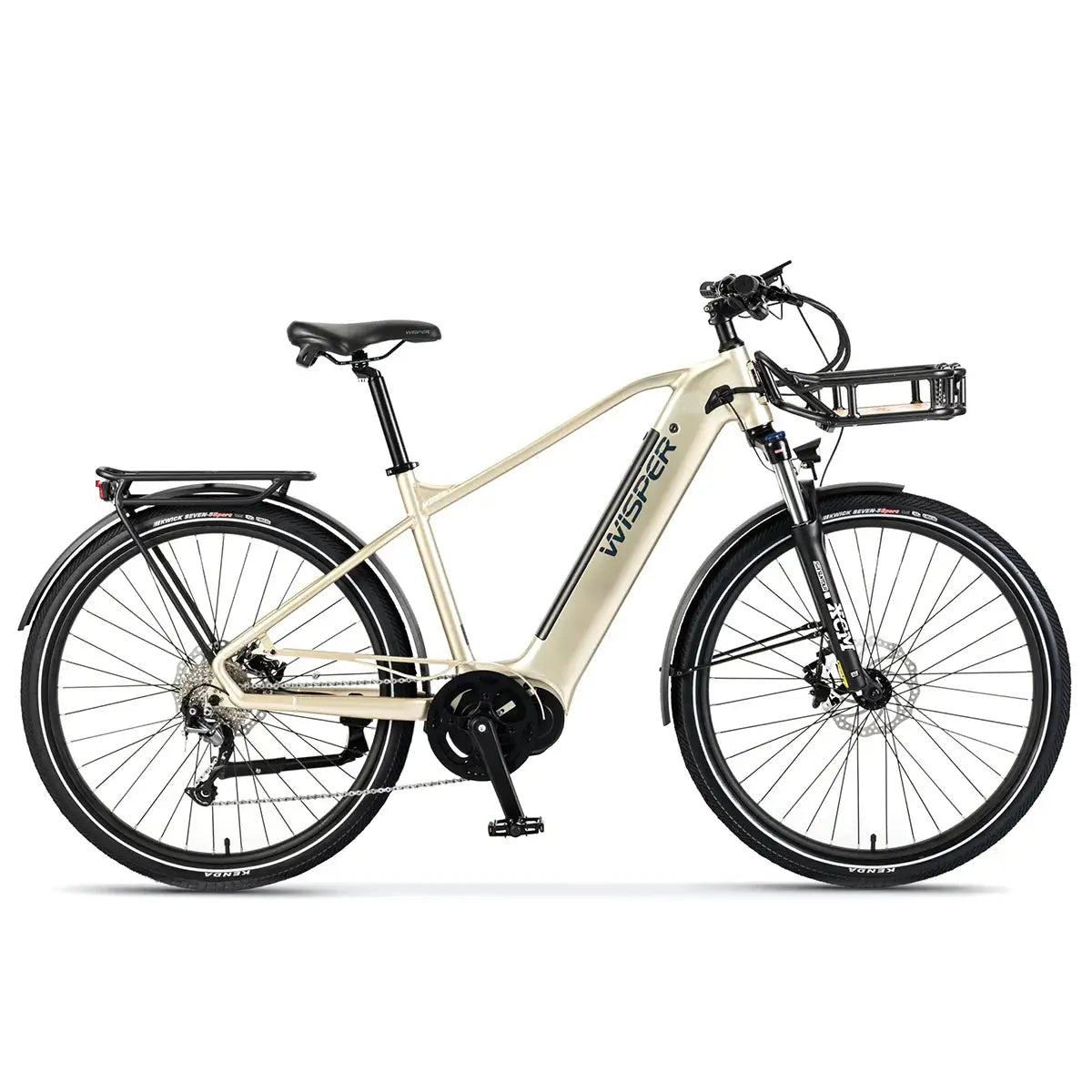

Front Rack (optional extra)

Wisper integrated custom, 10kg limit

Max Weight Load Inc. Luggage

21st 135kg
