Wayfarer Hub-Drive ST City

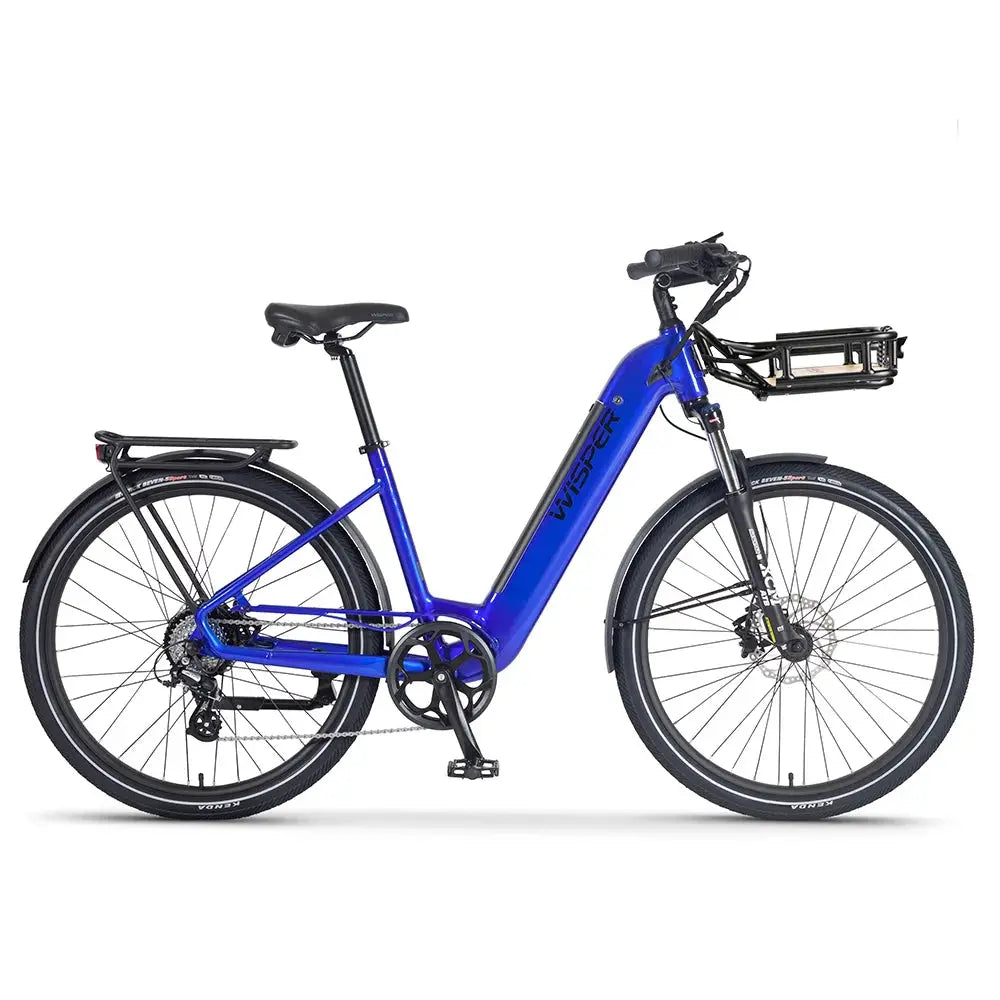

Wayfarer Hub-Drive ST City Electric Bike

Conquer the urban jungle and beyond with the sleek Wayfarer Hub-Drive ST City—an electric bike crafted for those who seek unmatched performance and unyielding comfort.

Key Features:

• Step-Through Frame Design: Our exceptionally stiff step-through frame guarantees stability and easy mounting, perfect for the urban commuter or outdoor enthusiast facing varying terrains.
• High-Torque Hub Motor: Hidden away within the hub, the Wayfarer Super Hi-Torque motor delivers a staggering 50Nm of torque at the wheel. This translates into 100Nm at the pedals, providing you with immense power to conquer any city incline with ease.
• Extensive Battery Life: Choose your range with our two battery options. Opt for the 450Wh battery for a maximum range of 60 miles, or upgrade to the 700Wh for an astounding 90-mile range, ensuring that your adventure never cuts short.
• Speed Throttle Variety: Equipped with a versatile thumb throttle, glide through crowds at a gentle 4mph or accelerate up to 15.5mph to breeze through your commute. Interested in full-throttle options? We offer customization on request for uncompromised power.

Ideal for:

• Urban Explorers: Navigate city streets with unprecedented agility and confidence.
• Nature Lovers: Effortlessly transition from pavement to trails, exploring sceneries for an extended period with our generous battery options.
• E-bike Aficionados: Experience next-level e-biking that amplifies your ride with intelligent design and superior torque.

The Wayfarer H7 City Hub-Drive Step-Through isn't just an e-bike; it's a testament to comfort meeting innovation. Take a ride on the Wayfarer and redefine what you expect from urban commuting and outdoor escapades. Your city, your trails, your adventures have never been this electrifying.

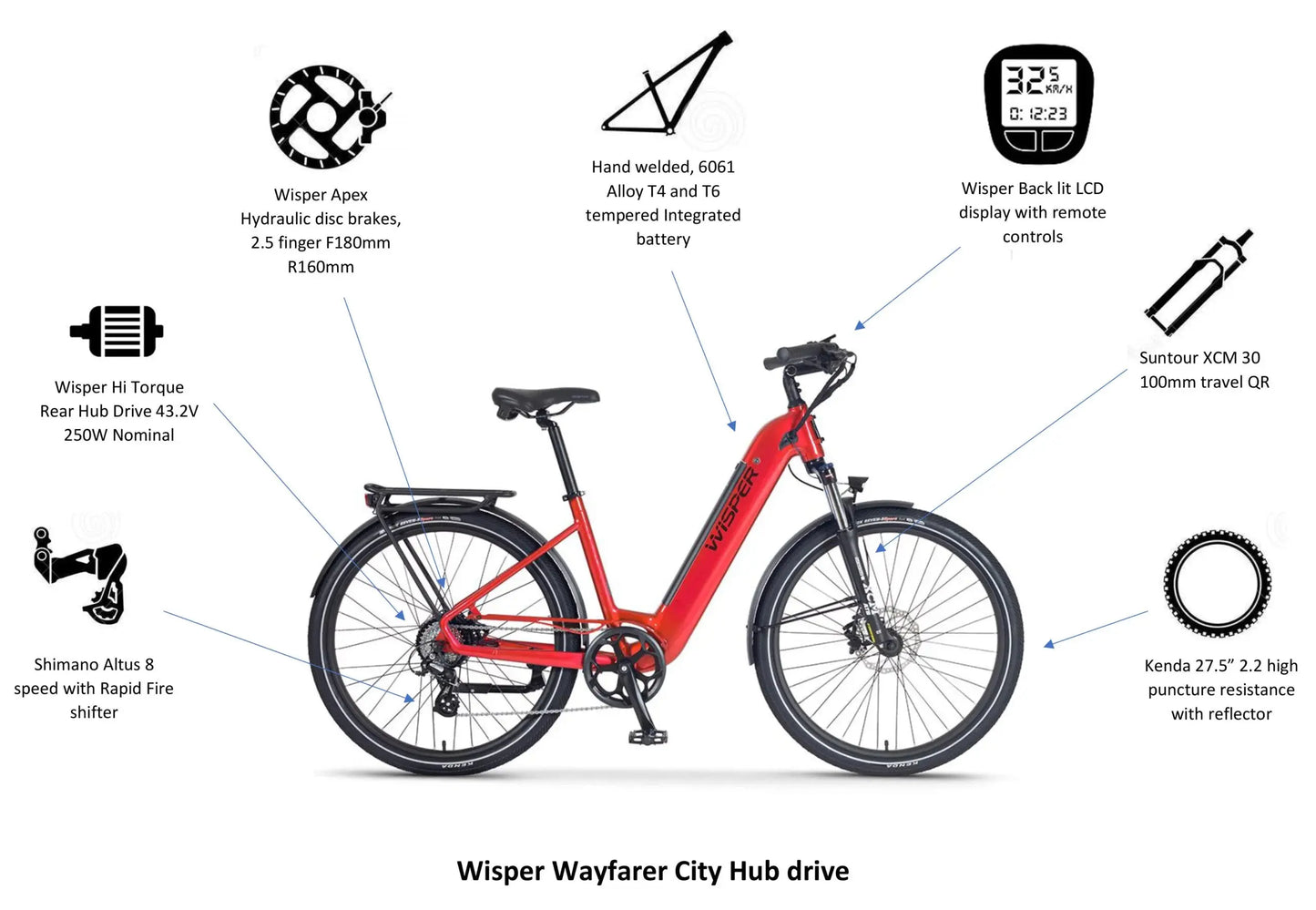

Technical Specification

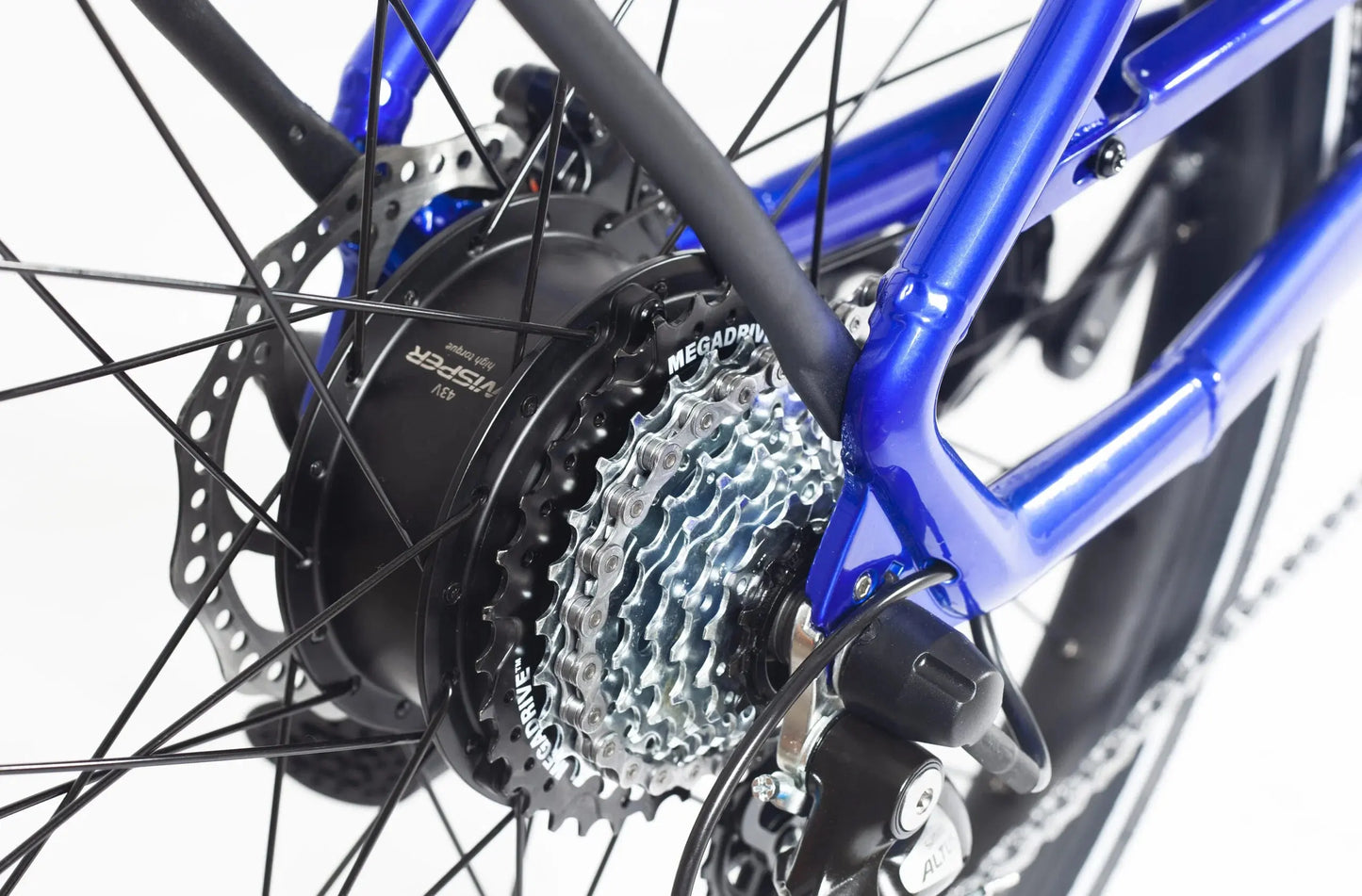

Motor Wisper Hi Torque Rear Hub Drive 43.2V 250W Nominal

Lithium Battery

In frame, secure removable. Chargeable in or out of frame
On/off button with LED charge status light.
Standard 450Wh
Long range 700Wh

Assisted range

450Wh Max Range = 60 miles (95km)
700Wh Max Range = 90 miles (140km)

Controls

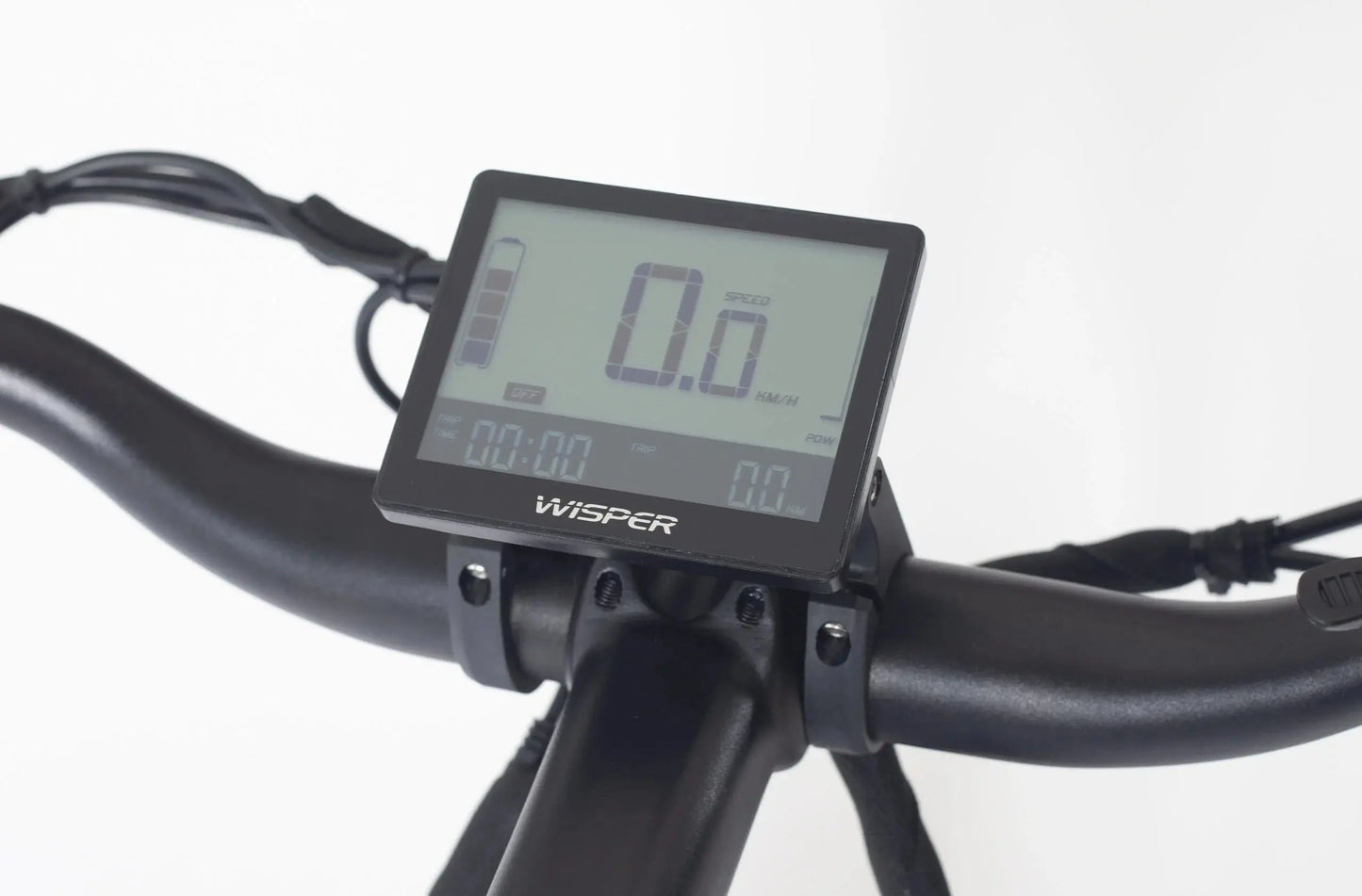

Wisper Back lit LCD display with remote controls
Thumb throttle to 4mph (6km/h) walk along
Thumb throttle to 15.5mph (25km/h) assist booster

Bicycle weight

450Wh: 26kg
700Wh: 28kg

Frame

Hand welded, 6061 Alloy T4 and T6 tempered

Frame size

18” 46cm

Frame Colour

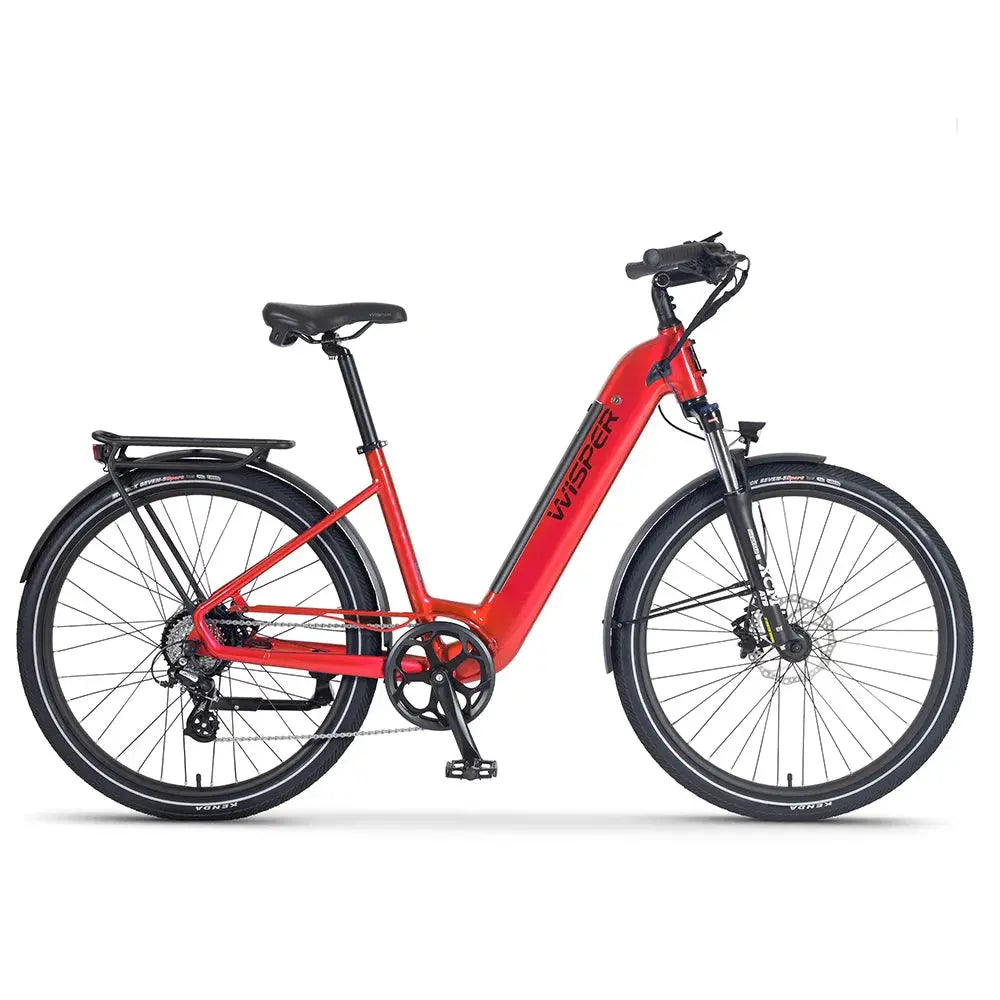

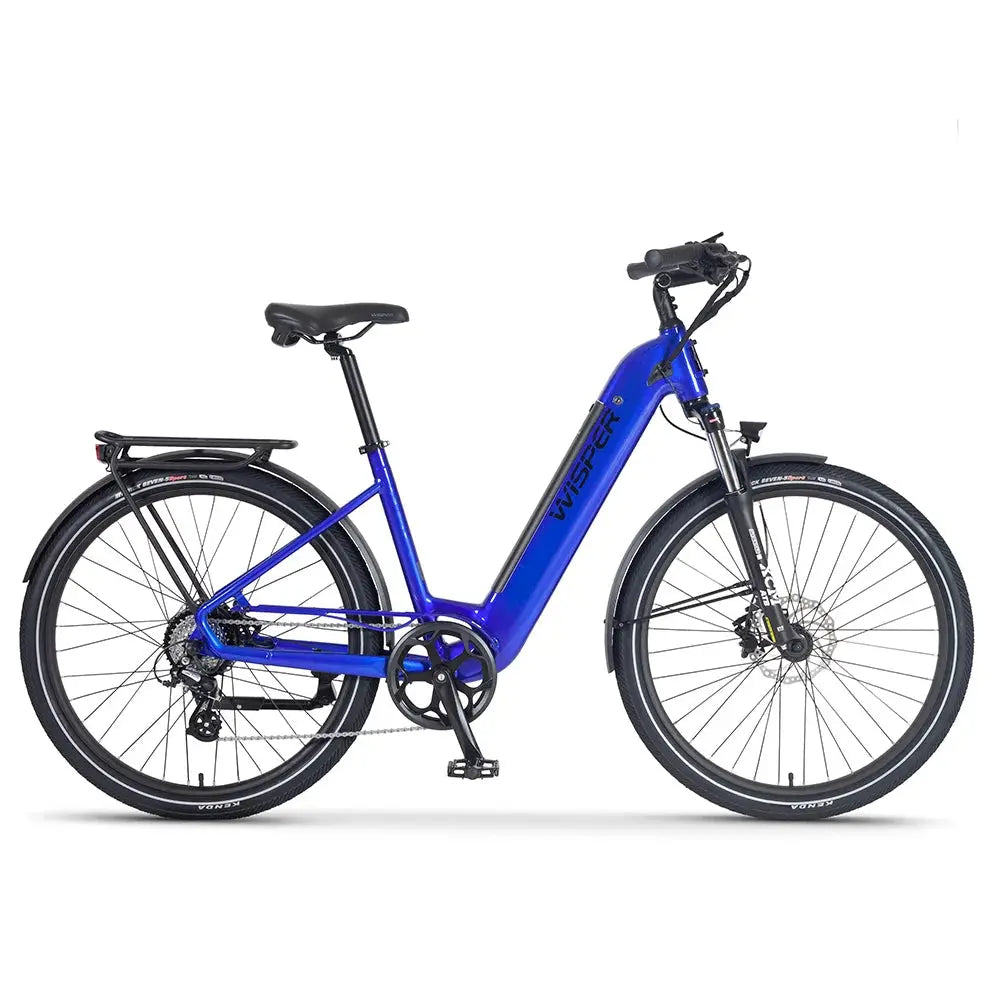

Pillar Box Red or Sky Blue 6 coats

Saddle

Wisper Comfort, eBike with seat handle

Kick stand

Black anodised alloy

Gears

Shimano Altus 8 speed with Rapid Fire shifter



Chain

KMC X8 rust resist 8 speed

Chain drive

Prowheel 48t

Freewheel

13 to 34

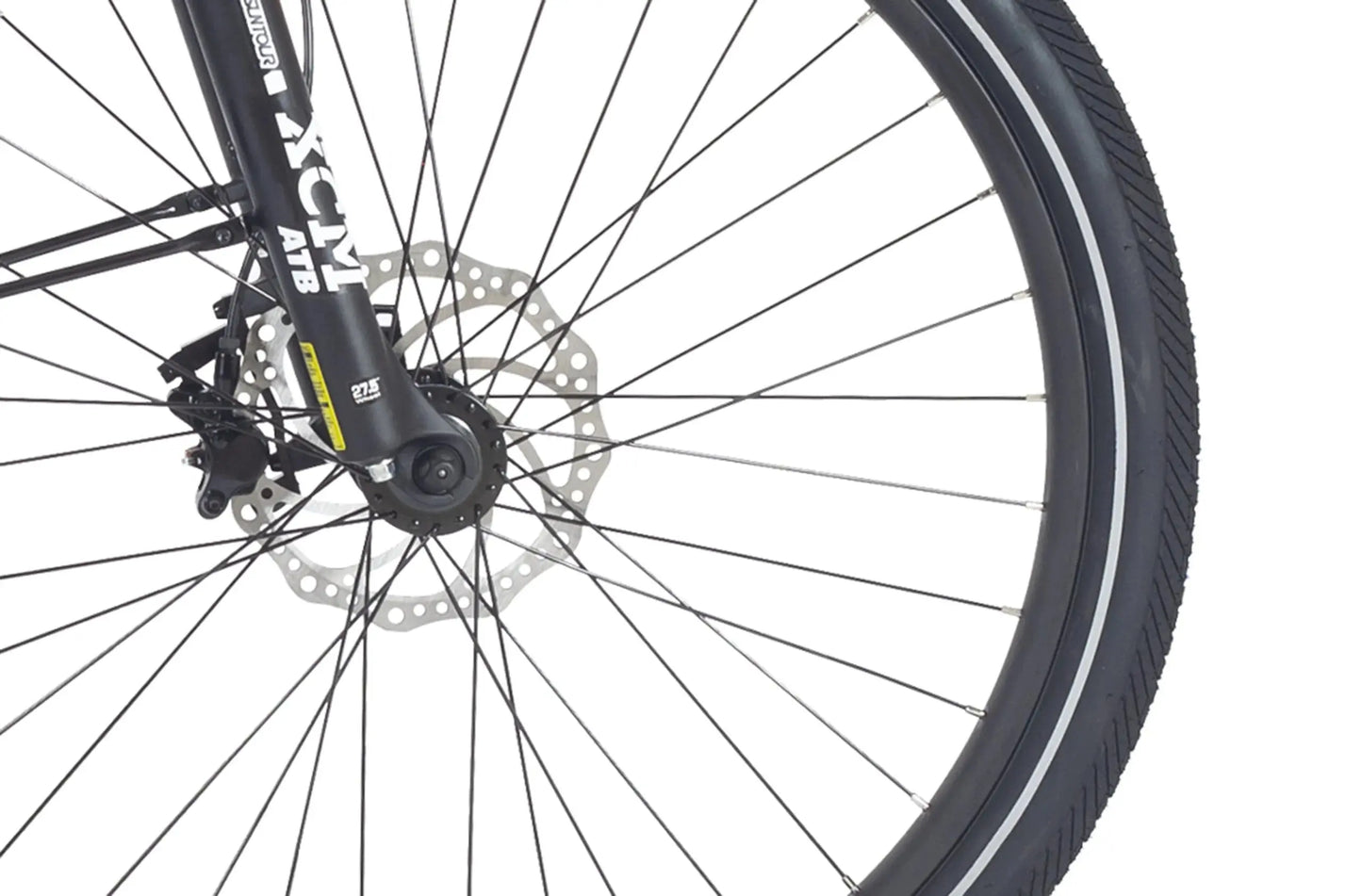

Brakes

Wisper Apex Hydraulic disc brakes, 2.5 finger F180mm R160mm

Wheels

Alloy black anodised double wall 27.5” x 1.24″ (31.4mm)

Tyres

Kenda 27.5” 2.2 high puncture resistance with reflector

Schwalbe Smart Sam Perf, DD, RaceGuard, Folding 27.5” x 2.25” First class all-rounder with extra safe Double Defence puncture protection due to the 3mm GreenGuard layer and SnakeSkin sidewall. ECE-R75 approved for great riding fun on your E-Adventure Bike.

Mudguards

Black Anodised Aluminium 2.6″

Lighting

Front: Spaningo XE 6V powered from bike battery
Rear: Spaningo XE 6V powered from bike battery

Forks

Suntour XCM 30 100mm travel

Bars

eMTB 760mm anodised black

Stem

Magix black anodised 70mm

Seat post

31.6mm 350mm with 100mm safety line

Rear Rack

Wisper integrated custom, 17kg limit

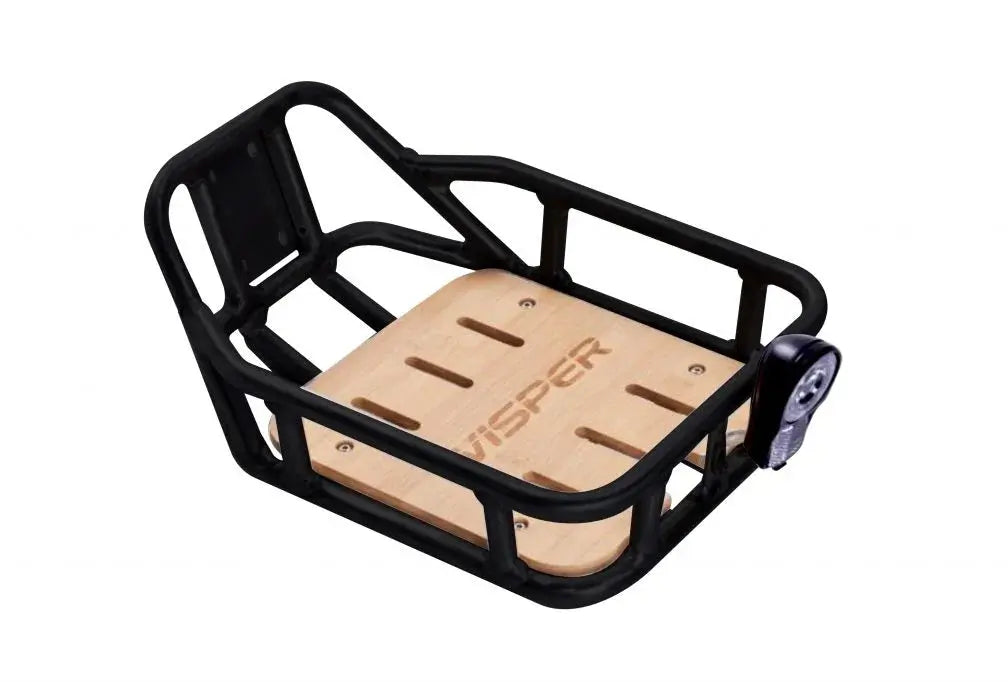

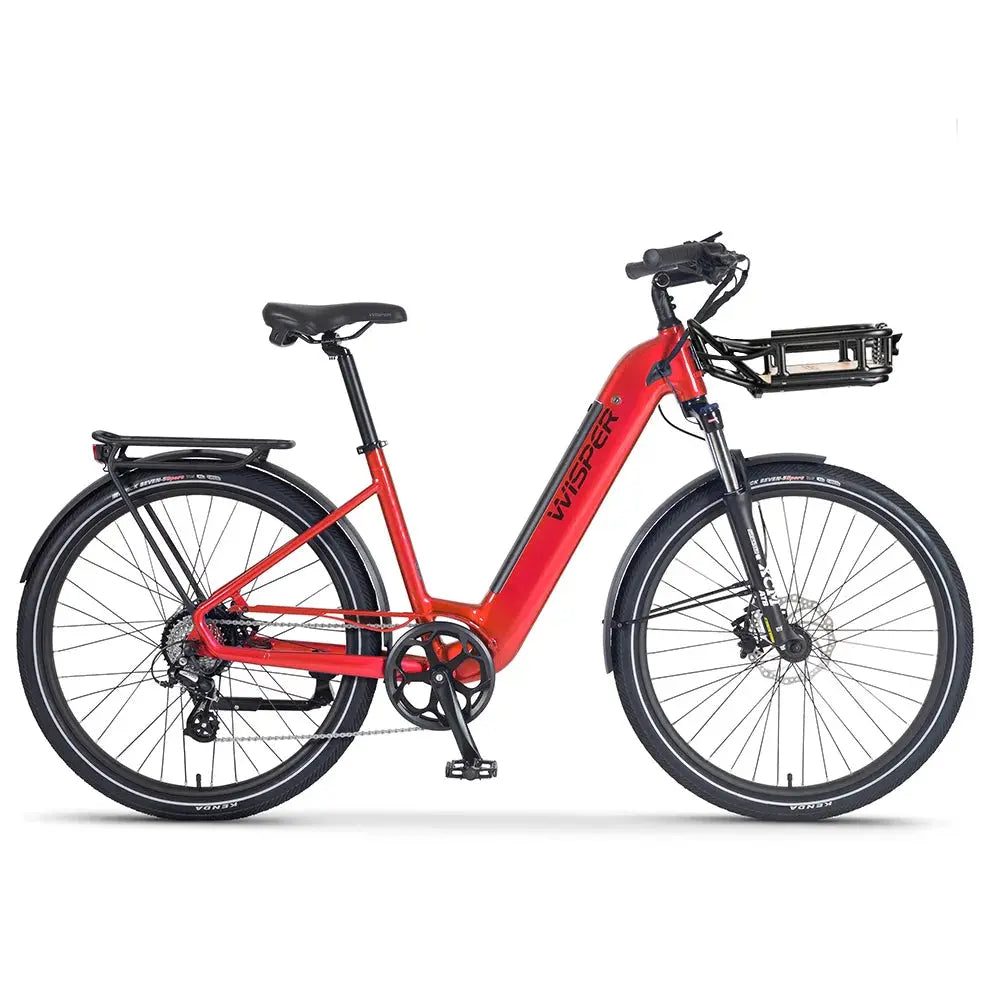

Front Rack (optional extra)

Wisper integrated custom, 10kg limit

Max Weight Load Inc. Luggage
21st 135kg
