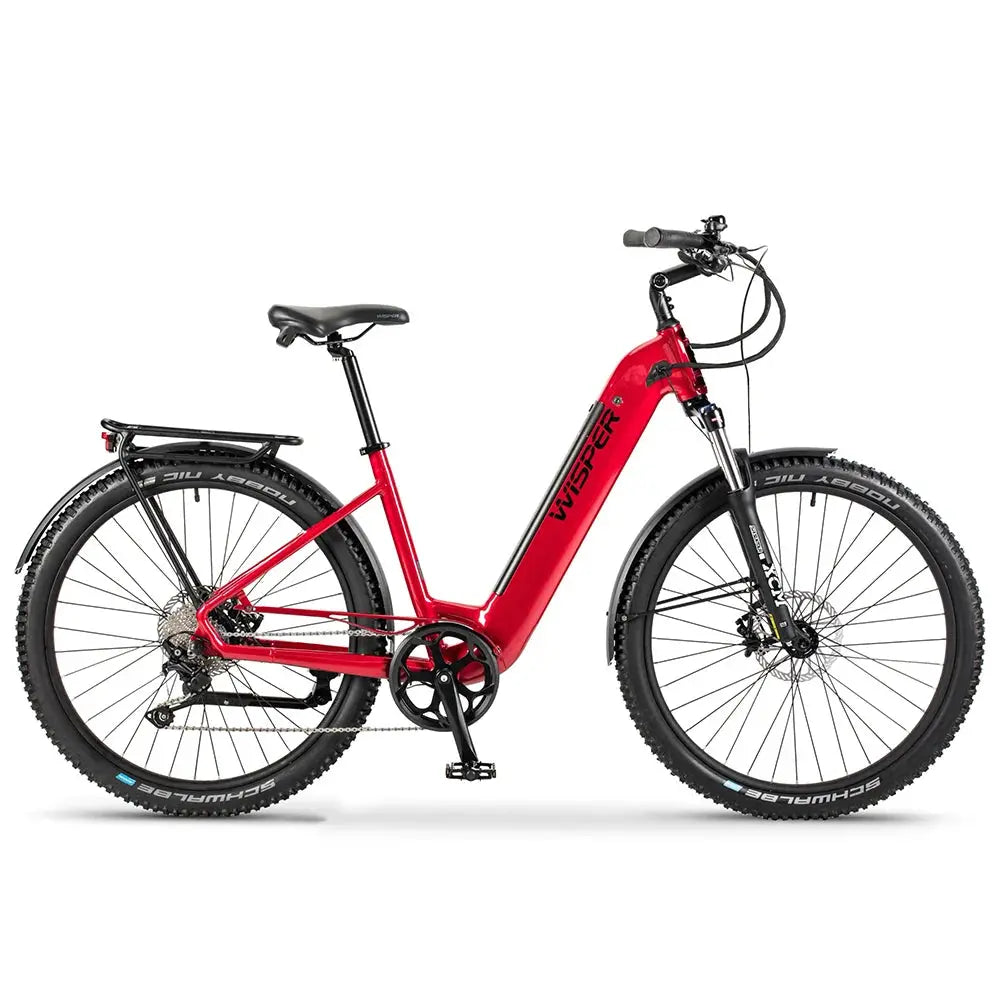

Wayfarer Hub-Drive ST Adventure

The Wayfarer H7 Adventure is the perfect e-bike for those seeking an off-road adventure. Its very stiff step-through frame provides excellent control while upgraded adventure tires make this bike even more perfectly suited to riders looking to explore off road.

Equipped with a super hi torque hub motor that produces 50Nm at the wheel — which is equal to 100 Nm at the pedals — and operated via thumb throttle speeds of up to 4mph (6km/h) when walking and 15.5mph (25 km/h) when in assist mode mean you can take on any terrain and not have to worry about muscle fatigue. You can even upgrade to full throttle if desired (call for details).

In addition, battery options include 450Wh with a maximum range of 60 miles (95km) and 700Wh with a maximum range of 90 miles (140km), meaning you can explore further than ever before — while still enjoying the same power, comfort, and control as if you never left home! So why wait? Get out there and explore new terrain with the Wayfarer H7 Adventure today!

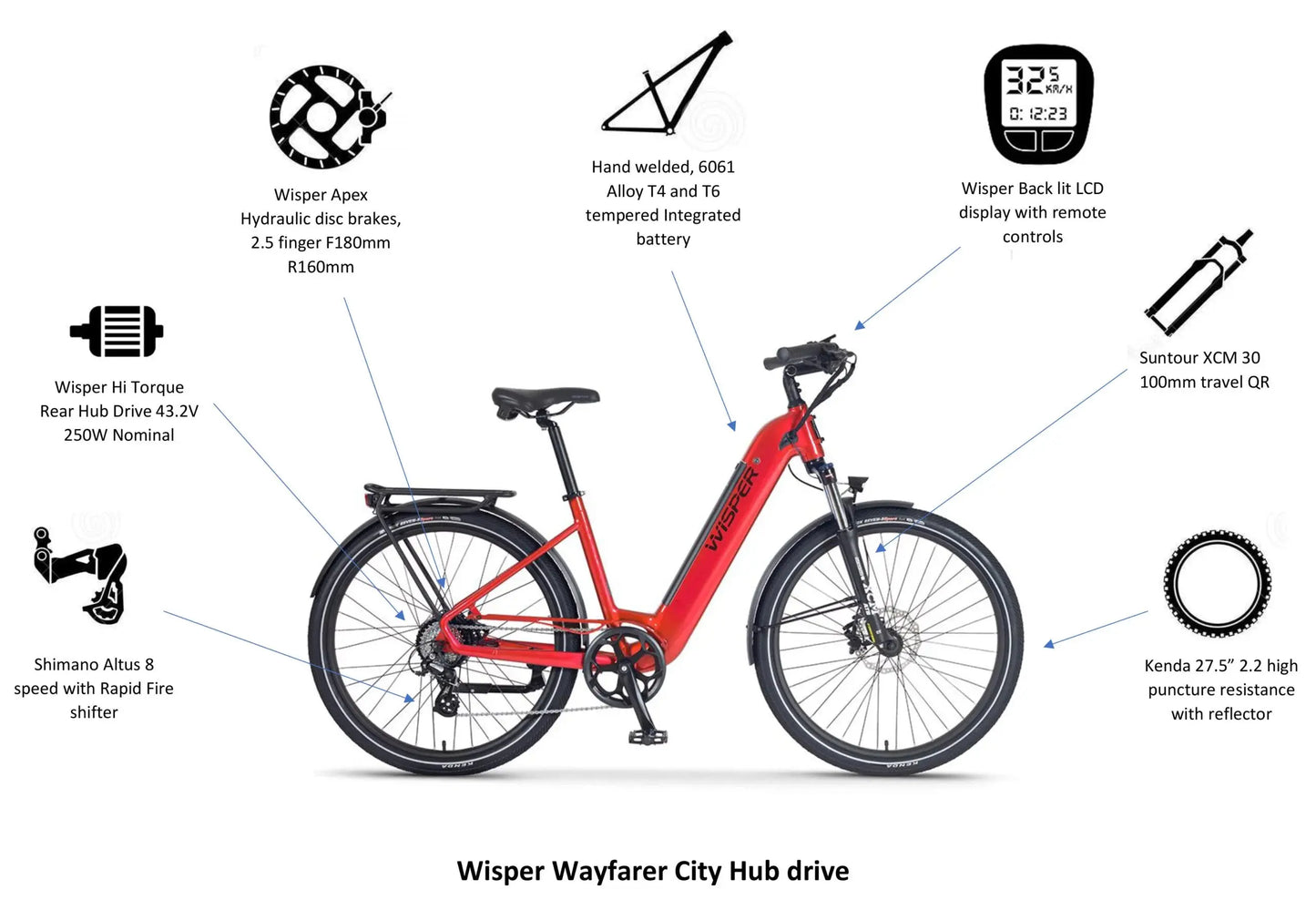

Technical Specification

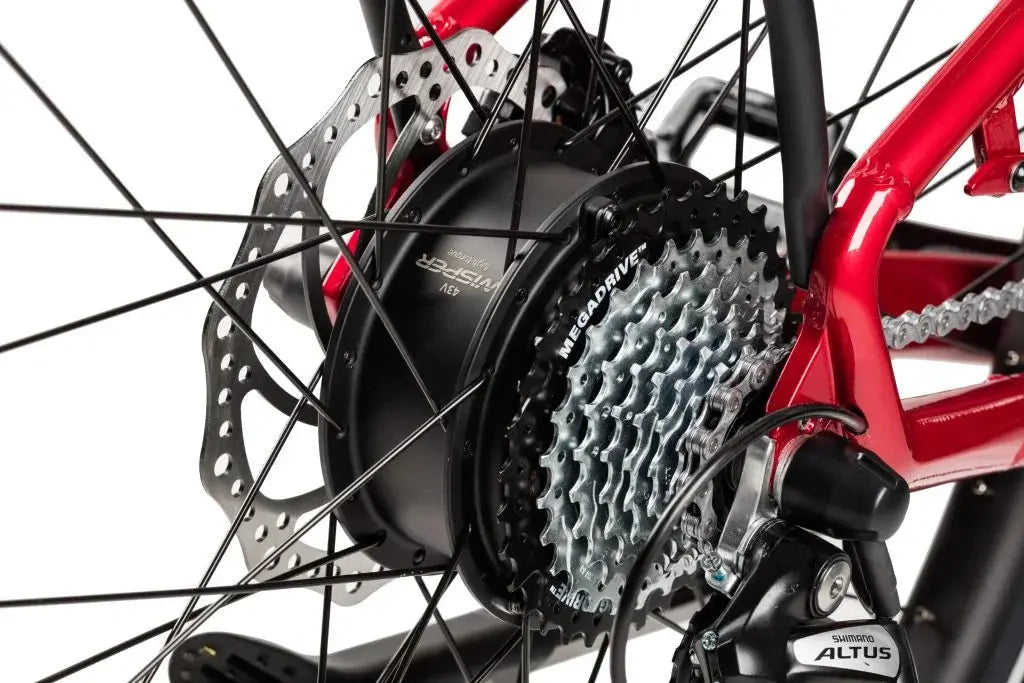

Motor Wisper Hi Torque Rear Hub Drive 43.2V 250W Nominal

Lithium Battery

In frame, secure removable. Chargeable in or out of frame
On/off button with LED charge status light.
Standard 450Wh
Long range 700Wh

Assisted range

450Wh Max Range = 60 miles (95km)
700Wh Max Range = 90 miles (140km)

Controls

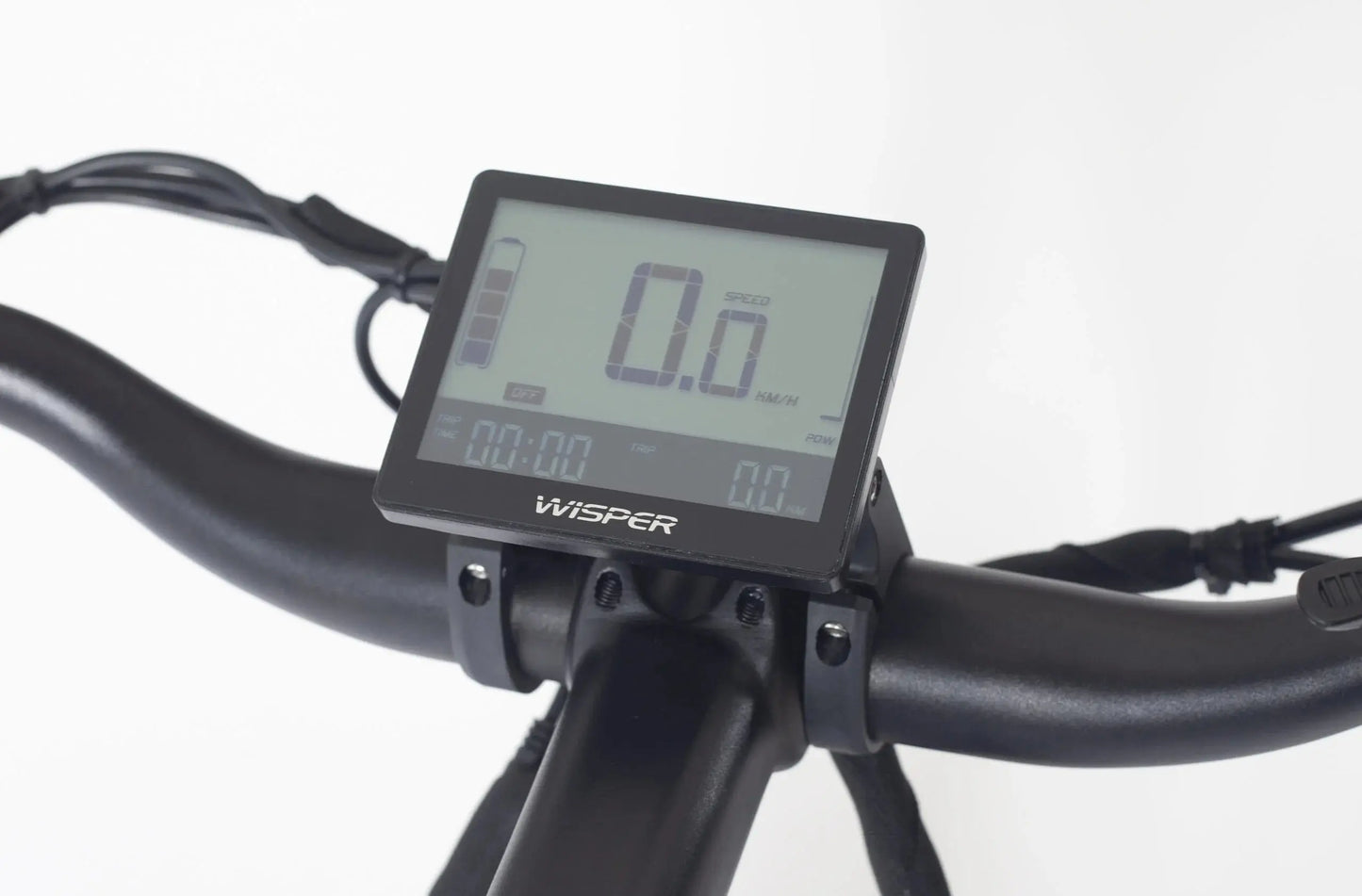

Wisper Back lit LCD display with remote controls
Thumb throttle to 4mph (6km/h) walk along
Thumb throttle to 15.5mph (25km/h) assist booster

Bicycle weight

450Wh: 26kg
700Wh: 28kg

Frame

Hand welded, 6061 Alloy T4 and T6 tempered

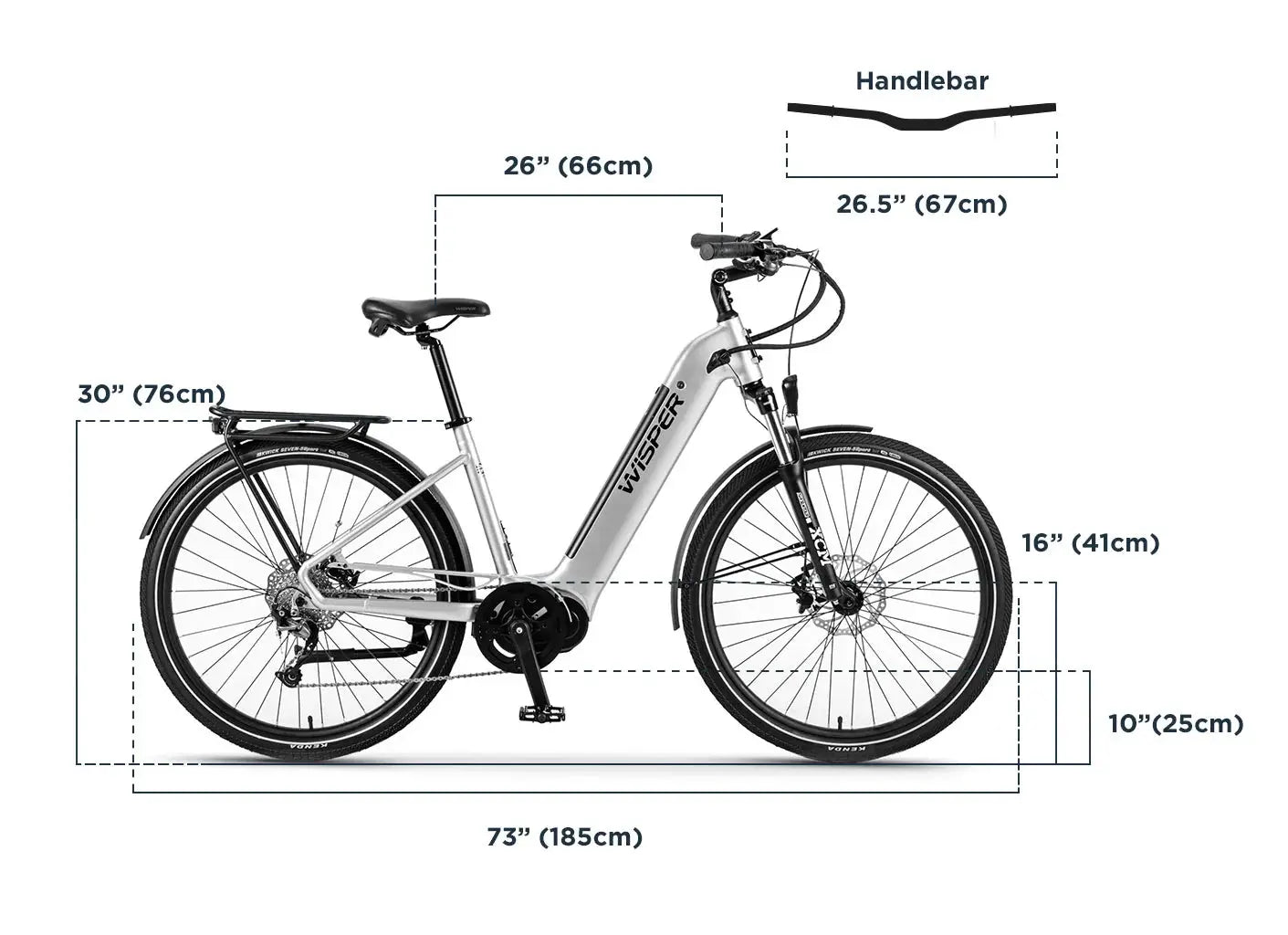

Frame size

18” 46cm

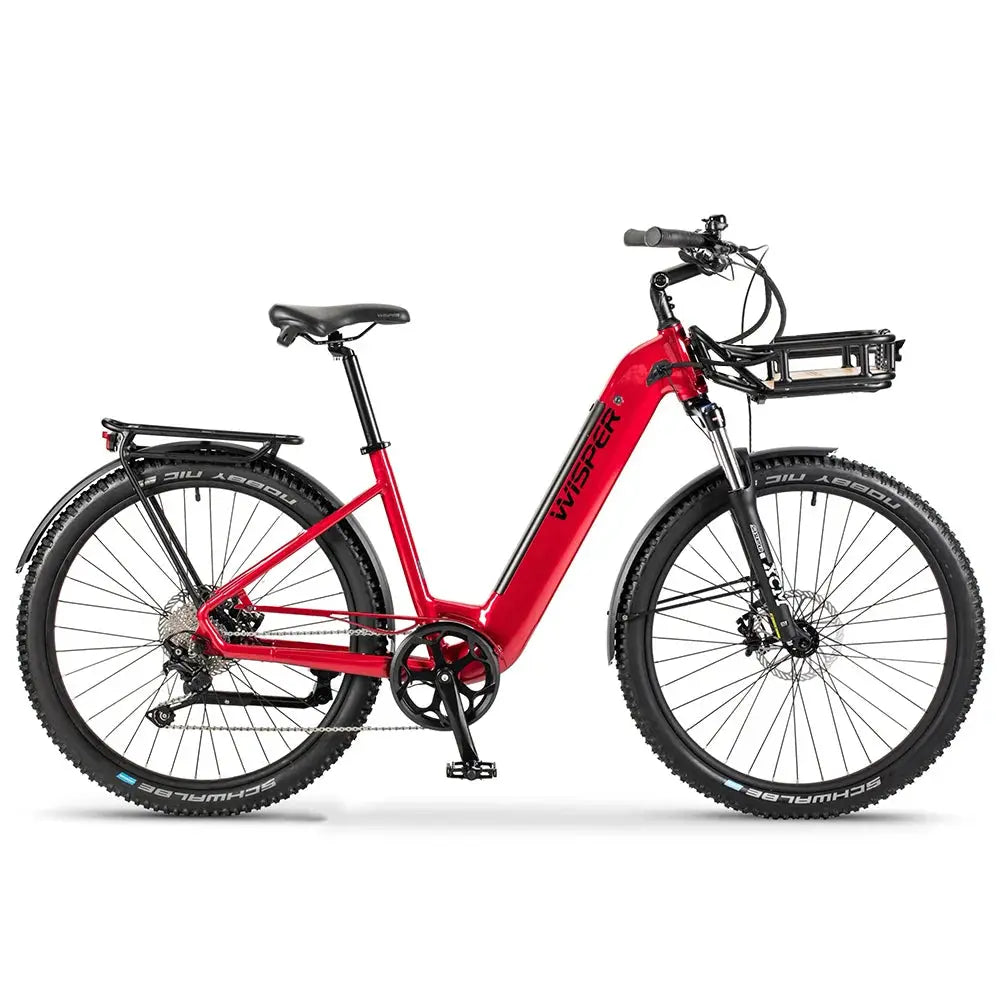

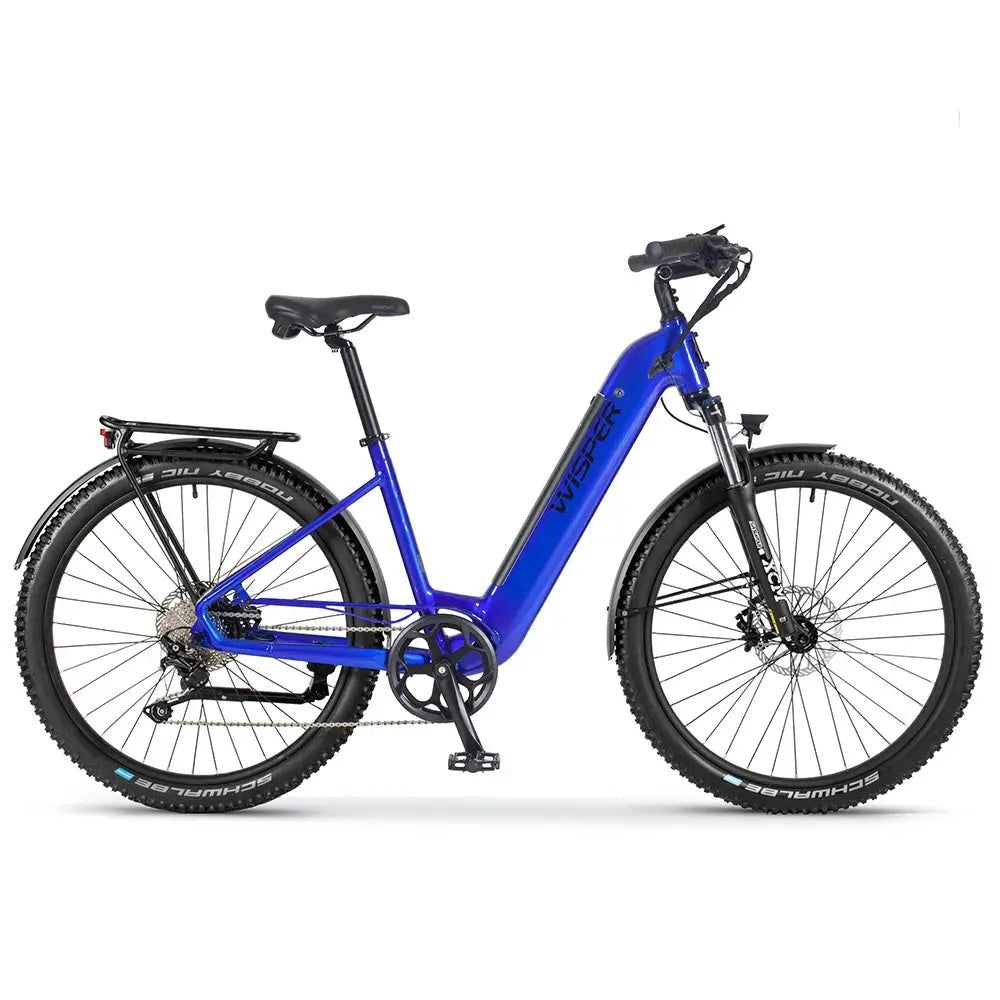

Frame Colour

Pillar Box Red or Sky Blue 6 coats

Saddle

Wisper Comfort, eBike with seat handle

Kick stand

Black anodised alloy

Gears

Shimano Altus 8 speed with Rapid Fire shifter

Chain

KMC X8 rust resist 8 speed

Chain drive

Prowheel 48t

Freewheel

13 to 34

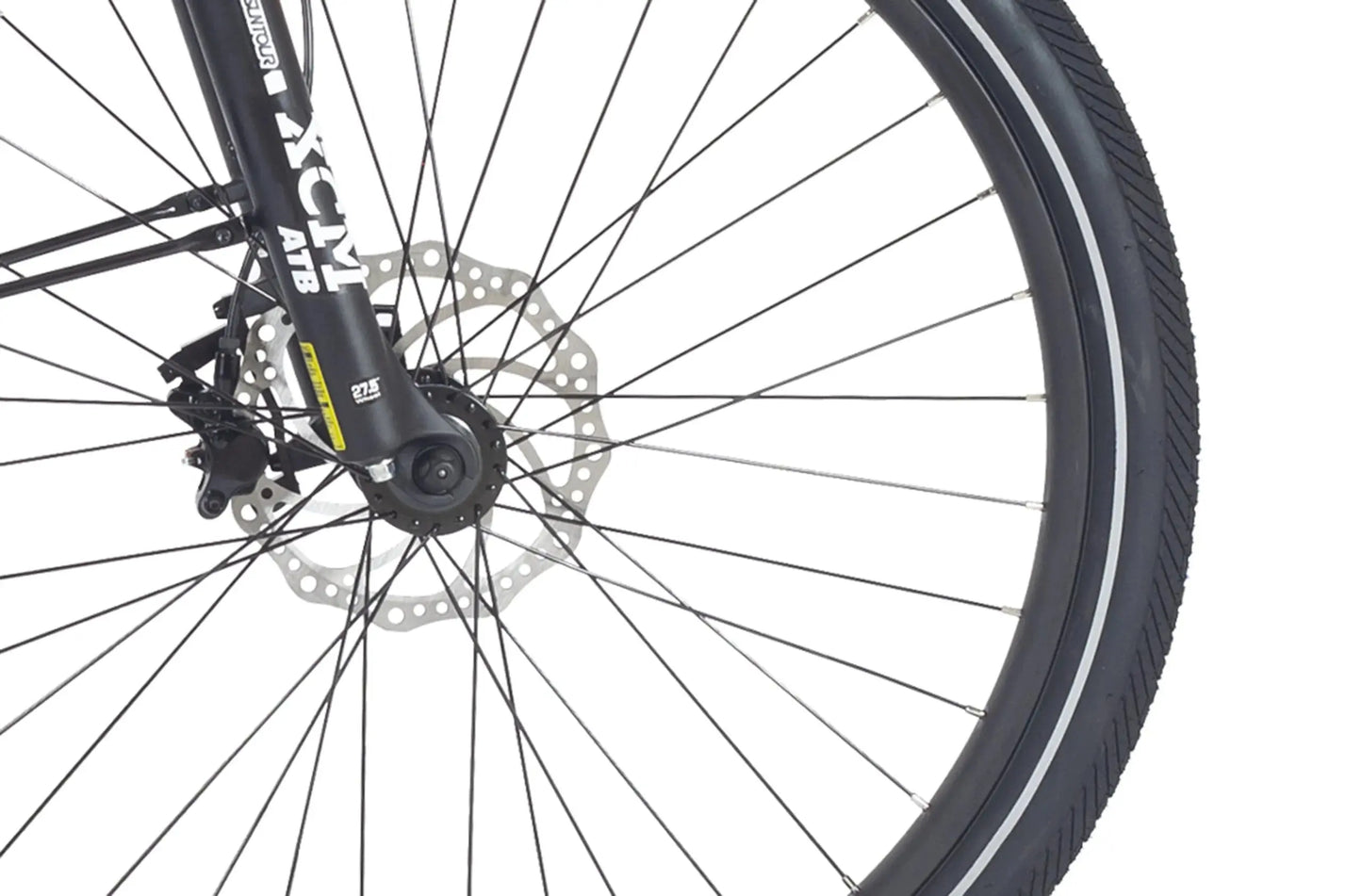

Brakes

Wisper Apex Hydraulic disc brakes, 2.5 finger F180mm R160mm

Wheels

Alloy black anodised double wall 27.5” x 1.24″ (31.4mm)

Tyres

Kenda 27.5” 2.2 high puncture resistance with reflector

Adventure Bike Tyre Upgrade
Schwalbe Smart Sam Perf, DD, RaceGuard, Folding 27.5” x 2.25” First class all-rounder with extra safe Double Defence puncture protection due to the 3mm GreenGuard layer and SnakeSkin sidewall. ECE-R75 approved for great riding fun on your E-Adventure Bike.

Mudguards

Black Anodised Aluminium 2.6″

Lighting

Front: Spaningo XE 6V powered from bike battery
Rear: Spaningo XE 6V powered from bike battery

Forks

Suntour XCM 30 100mm travel

Bars

eMTB 760mm anodised black

Stem

Magix black anodised 70mm

Seat post

31.6mm 350mm with 100mm safety line

Rear Rack

Wisper integrated custom, 17kg limit

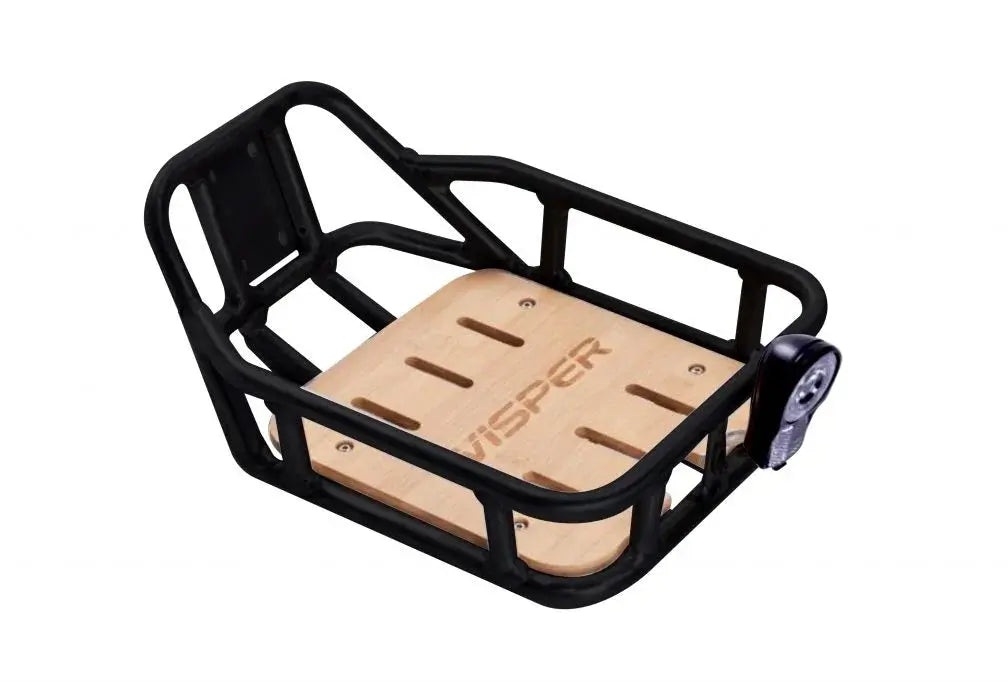

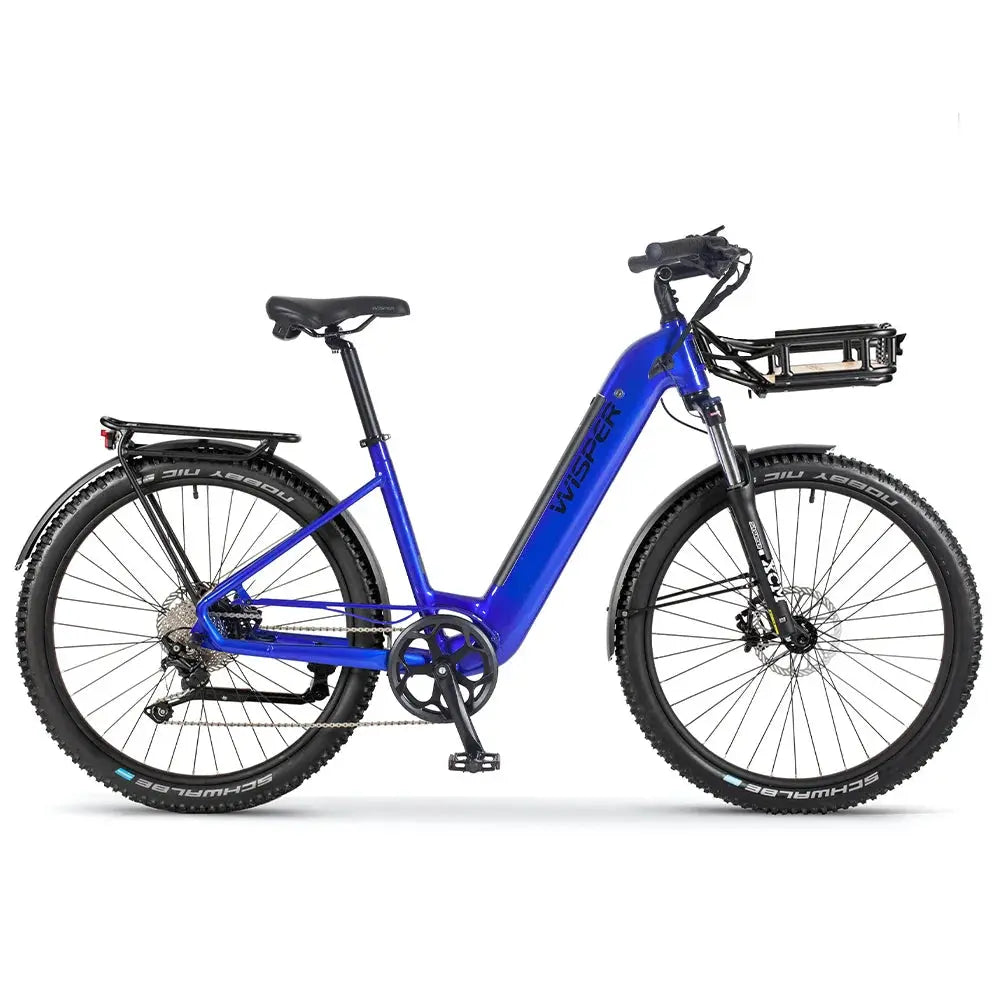

Front Rack (optional extra)

Wisper integrated custom, 10kg limit

Max Weight Load Inc. Luggage
21st 135kg
